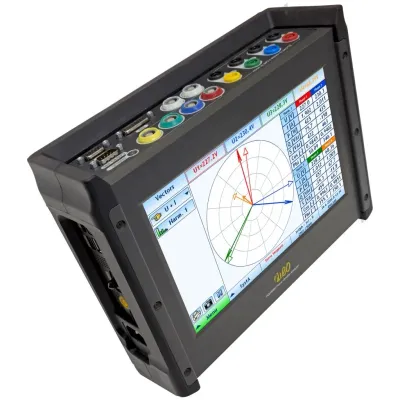

NEO Messtechnik - Model PQA 8000 -Mobile Power Quality Analyzer
The NEO PQA 8000 is an advanced mobile power quality analyzer designed to address the challenges of modern electrical measurement. It offers the unique ability to measure supraharmonic currents and voltages up to 150 kHz/500 kHz, making it integral for power quality engineers working in high-frequency environments. The device supports continuous data recording at full sampling rates, and can determine grid impedance with an extension box, covering up to 150 kHz or 450 kHz. Its remote accessibility via TeamViewer© or Anydesk© ensures seamless operation even in enclosed spaces, while offering robust support with a CAT IV 600V safety rating. This analyzer boasts high accuracy of 0.05%, a dynamic range from 0.5mA to 150kA, and precise sampling capabilities at 124kS/s or 1MS/s. Featuring a Windows-based operating system with a multi-touch display, the PQA 8000 is user-friendly, enabling straightforward setup, measurement, analysis, and report generation. Compliant with numerous international standards, the analyzer excels in applications spanning public grids, renewable energy, motors, and electrical equipment diagnostics.
As the year progresses NEO Messtechnik continues to evolve and demonstrates once again the ability to forge its long-standing expertise of the Power Quality market into yet another impressive PQ Analyzer that enables engineers to stay ahead of the curve.
With the new PQA 8000, you can measure supraharmonic currents and voltages up to 150 kHz / 500 kHz as needed. Our unique measuring device allows continuous recording of raw data at full sampling rate or use an extension box to determine the grid impedance up to 150 kHz or 450 kHz. You can access the device at any time using TeamViewer© or Anydesk©, making it suitable for installation in control cabinets. Should any issues or uncertainties arise, we offer remote support to assist you.
HARDWARE
- Power Quality : Class A ++
- High Sampling Rate : 124kS/s or 1MS/s
- High Accuracy : 0.05%
- High Resolution : 18bit / 24bit
- High Dynamic : 0.5mA to 150kA
- High Safety : CAT IV 600V
- High Performance : WINDOWS PC with Multi-Touch and battery pack
- High Connectivity : additional input signals, Interfaces, AC&DC power, etc.
SOFTWARE
- Supraharmonics up to 500kHz : Harmonics, Inter- Supraharmonics, THD WORLD LEADING
- Visualisations : Recorder, Waveform, FFT, Vector, Table, etc.
- Transient Recording : Waveform & Disturbance Trigger
- Disturbance : triggering & storing of raw data, 1/2 period data or 10 period data
- Continuous Storing of raw data in full sampling rate, 1/2 period data or 10 period data
- System Dynamics : Resonances, Phase Angle Jumps, etc.
- Phasor Measurement Unit (PMU) and RoCoF
- Report : EN50160, IEEE519, IEC61000-2-4, etc.
