The process flow enters the cooler through the inlet piping at trailer edge. It flows to the top of the cooler into the header box where it passes through the coils. The system monitors outlet temperature and adjusts the fan speed and louver position to maintain the desired set temperature. The flow then exits the cooler through the outlet piping also at trailer edge. Through this design, customers can safely cool their process flow, reduce associated costs, and maximize the efficiency of the overall production system.
Bold Production Services LLC
Bold - Model B-Cool - Mobile Total Flow Coolers for Gas and Liquid Temperature Reduction
Mobile Total Flow Coolers are specialized units designed by Bold to efficiently lower gas and liquid temperatures, aligning with downstream process requirements. These systems enhance production streams, hence enabling increased oil and natural gas output. The design features forced draft, trailer-mounted packages powered by an electric motor. Such power can be accessed through electric co-op or integrated natural gas power generation systems from Bold itself. The operational process initiates as the process flow enters via the inlet piping at the trailer edge. It then travels to the cooler's top, entering a header box to pass through coils. Advanced monitoring allows adjustments in fan speed and louver positioning to retain desired temperatures. Finally, the cooled flow exits through the outlet piping. The system not only ensures safer process cooling but also enhances cost-efficiency and overall production effectiveness.Most popular related searches
power generating system
natural gas power
gas power generation
power generation system
natural gas generator
natural gas engine
NOx emissions
power generation
electric motor
gas powered

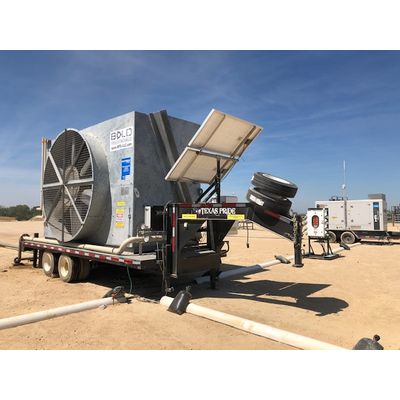

Mobile Total Flow Coolers are used to reduce gas and liquid temperatures to meet downstream process requirements as well as optimize production streams to produce more oil and natural gas. Bold’s Mobile Total Flow Coolers are forced draft, trailer mounted packages that are powered by an electric motor. Power can be provided via electric co-op or natural gas power generation systems provided by Bold.
Capabilities
- Utilizes cloud-based platform to remotely monitor operations providing real time data, alarms, and reporting
- Our cooler fleet is NACE compliant, built to ASME Code, and abides by NEC Class 1 Div. 2 regulations
- All components of the cooler package are trailer mounted, accessible to transport with a 2 5/16” gooseneck trailer hitch or a kingpin connection. The trailer mounted capability reduces installation cost, time, safety exposure, as well as reduced freight cost
- Ability to maintain consistent desired outlet temperature
- The coolers are efficiently engineered to be configured with 10’ spacing or less for multiple coolers, which reduces the customer’s overall footprint on location.
Environmental Impact
- By utilizing Bold’s B-Cool environmentally sustainable fleet, the customer can reduce NOX emissions by 95%, using one 165kW generator to power up to 8 coolers in contrast to conventional natural gas engine driven coolers.
