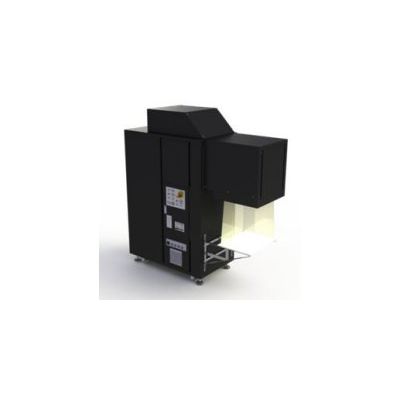

Model AAA - Solo APOLLO Solar Simulator
All-Real Solo APOLLO Solar Simulator System continues APOLLO’s outstanding optical design with Class AAA performance to provide a maximum of 370 x 470 mm class AAA irradiance except for using only single xenon lamp. For R&D/Lab requirements, we can also provide customization service, please contact us for further information. Moreover, All-Real Solo APOLLO solar simulator is able to measure mono-crystalline silicon and thin-film PV cell for the incoming and production quality control.
-
Most popular related searches
Features
- Illuminated area : ≧370 x 470 mm (class AAA performance is assured within 370 x 470 mm)
- Steady-state and full spectral range 350 nm ~ 1700 nm, suitable for all kind of flat PV (mono-Si, poly-Si, tandem CIGS, etc.)
- Better than IEC, JIS and ASTM class AAA performance
- Radiation source:Xenon-lamp
- Cutting-edge optical design (Unique lamp filter and homogenizer)
- Irradiance level adjustable : 200 W/m2 (Neutral Density Filter is needed), 400 W/m2、, 600 W/m2, 800 W/m2, 1000 W/m2 five irradiance can be switched/achieved in an hour
- Excellent measurement reproducibility and accuracy
- Smart control system and touch screen user interface
