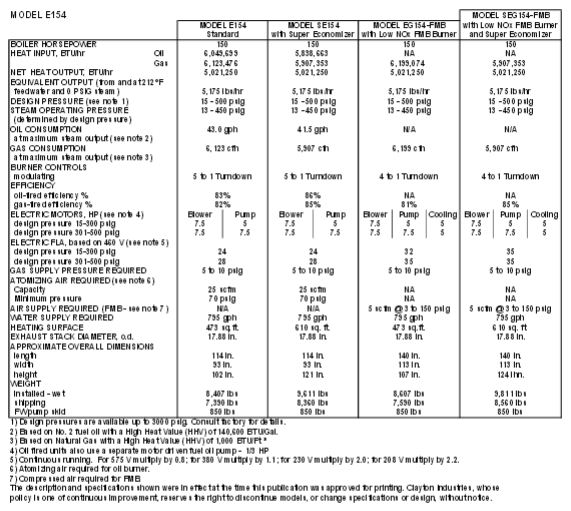

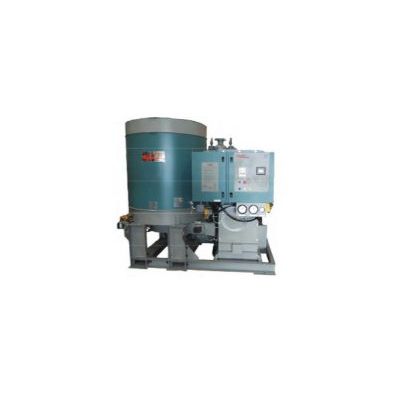

Model E154, 150 BHP -Steam Boiler
Clayton steam generators will normally fit in any available area while also reducing construction costs on new building installations.
FUEL EFFICIENT
High efficiency wJiich is inherent w*h itie Clayton design translates into lower operating costs and Improved overall system operation
RESPONSIVE
Very rapid responseto changing steam loads. Clayton steam generator will automatically modulate to match your steam load profile while maintaining system steam pressure
SAFE
Ota once through design el ininates the possibility of a steam or water side explosion. The Clayton steam generator is simply the safest steam boiler on the market.
LESS WATER WASTE
Clayton`s design concentrates TDS blowdown significantly which reduces wasted fuel, water and chemical costs.
FAST START
Fill steam pressure and output in minutes from a cold start- fl up saves fuel and labor c ost over conventional designs. Eliminates wasted fuel from idling.
AUTOMATIC
Operation is automatically controlled and the Clayton steam generator can be started from a single switch or remotely using an automatic start option.
LOWWEIGHT
The relatively light weight means that all sizes of Clayton steam generators can be easily moved and installed even in areas with limited structural support.
RELIABLE
Reliability of the Clayton steam generator is field proven and unsurpassed. This results in greatly reduced mainte- nance and attendance.
HIGH QUALITY STEAM
Steam Quality in excess of 99.5% dry is assured at all times. Tli s is the highest steam quality of any competitive design. Less water and impurities further increase your energy effi- ciency.
