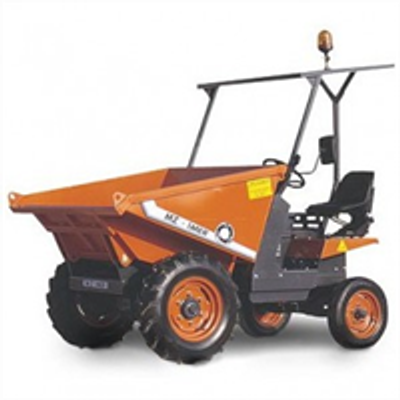

Model MZ 1500 HD 4×2 -Site Dumper

• 3,307 pound maximum load
• 1.3 cubic yard capacity (heaped)
• 4 speed transmission
• 12.5 mph top speed loaded
• Frontal hydraulic dumping

General

• Transport Weight: 2,470 pounds
• Maximum load capacity: 3,307 pounds
• Water Level: 0.8 cubic yards
• Heaped Up: 1.3 cubic yards
• Unloading: Frontal hydraulic

Transmission

• Transmission: Mechanical
• Gear Box: 4 Speed Forward / Reverse
• Clutch: Single dryplate
• Traction: 4 x 2
• Travel Speed: 2.5 to 12.5 mph
• Gradeability: 30%
• Steering: Hydraulic

Tank Capacities

• Fuel: 3.9 gallons
• Hydraulic Oil: 6.1 gallons

Chassis

• Chassis: Rigid
• Front Suspension: Rigid axle
• Back Suspension: Oscillating axle

Electric System

• Battery: 12V - 47A
• Alternator: 20A

Wheels

• Front driving wheels: 7.50-16
• Back steering wheels: 145/80R-13

Engine

• Model: Hatz 1D90Z
• Cylinders: 1
• Cylinder Bore: 0.722 cc
• Horsepower: 15 HP
• Fuel: Diesel
• Injection: Direct Injection
• Cooling: Air cooling

Brakes

• Brake: Hydraulic Brakes
• Parking Brake: Lever activated
• Turning Radius
• Outer: 134.3 inches
• Inner: 72.8 inches

Standard Equipment

• CE Certification: ROPS arch, security belt, backward acoustic signal, rear view mirror, ergonomic seat, strobe light
