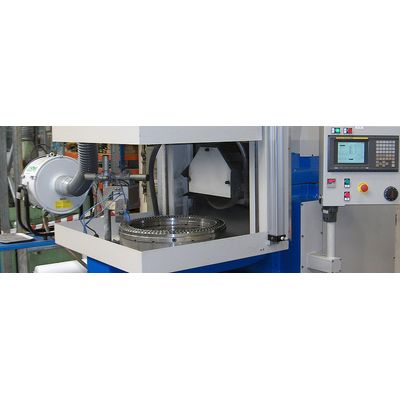

Model RG 1 -Rotary Tabled Surface Grinding Machine

SHARE

The RG1CNC is the final evolution of the proven rotary tabled surface grinding machine range from Abwood Machine Tools. Featuring a full CNC control with customised grinding canned cycles it is possible to achieve highest component accuracy with minimal operator knowledge. Available in table diameters up to 600mm and capable of using grinding wheels up to 400mm diameter the RG1 series of surface grinders offers maximum capacity whilst maintaining a relatively small footprint.

  • Full GE Fanuc CNC control
  • Standard Grinding canned cycles for ease of operation
  • Fully enclosed guard and mist extraction fulfil the latest HSE requirements
  • Gap elimination for automatic component touch-on as standard

The benefits of rotary tabled surface grinding machines are often overlooked by process engineers. As well as being the only solution for cylindrical parts, the RG1 CNC is well suited to spread grinding of small components. Due to the high surface speed of the rotary table, higher material removal rates and decreased cycle times are just some of the benefits over conventional surface grinding machines.

  • Workpiece Material: Various
  • Work Process: Various
  • Maximum Workpiece Diameter: 600mm
  • Minimum Workpiece Height: 275mm
  • Machine Dimensions: 2200mm x 1600mm x 1800mm
  • Machine Weight: Approx. 6000kg
  • Connection Capacity: 15 kW
  • Voltage/Frequency: 400V/50Hz; 480V/60Hz
  • Compressed Air Requirement: 5-7 bar
  • Coolant: Re-circulating coolant system dependant on application
