Model Titan -Racking
With our experience building ground mounted systems since the mid 1990`s, we know what works, what makes sense, and what is easiest for installers. The Titan Racking ground mount has the strength and versatility that is incorporated into all of our racking designs. Strong to handle Ontario`s climate, and versatile to suit any installation location. With the modular design of the Titan Racking, systems can be configured to form expansive rows as wide as the project allows. With the adjustment mechanism, the Titan Racking can be tilted according to the seasonal sun angle for maximum energy harvesting.
Robust
Constructed of high strength, anti-corrosion hot-dipped galvanized steel, anodized aluminum, and stainless steel fasteners.
Secure
Easily adjust the angle of the array to accomodate for seasonal sun angle, from 30 to 60 degrees.
Modular
Each section of 16 modules can be placed independantly, or combined to span a row as fas as the system size will allow.
Efficient
The module mounting beams are designed to accomodate the Clicloc module fastening system for rapid installations.

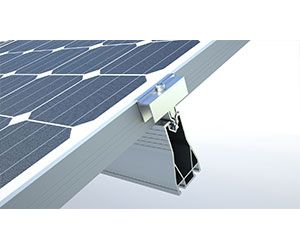

- Rapid installation with the Clicloc module fastening system
- Stainless steel hardware securing system against corrosion
- Integrated grounding reduces installation cost and time
- Tested to withstand double the clamping force required

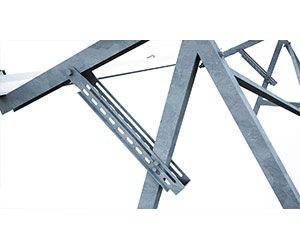

- Seasonal tilt mechanism with locking pin
- Can be adjusted easily with just one person
- Mechanism and hardware are galvanized for durability
- 30-60 degree range of motion for optimum energy collection

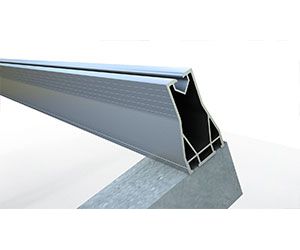

- Proprietary module mounting beam for efficient installation
- Maximum strength structure to withstand Ontario snow loading
- Aluminum construction protects module from corrosion
- Easily configured and linked with slotted profile

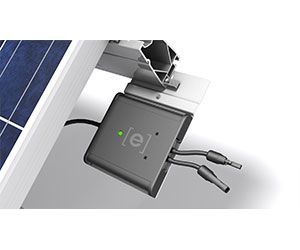

- Designed with micro-inverter installation in mind
- Securely connected to underside of beam for easy access
- Stainless steel mounting hardware protects against corrosion
