Model TR 560 -Steam Turbine

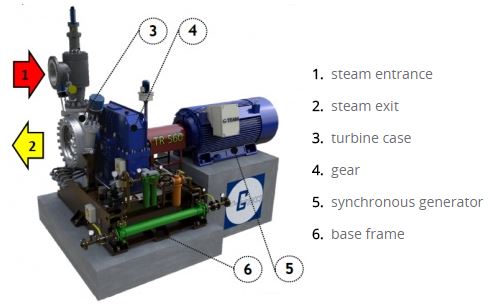

The Stator of TR 560 is connected to the gear, which reduces the rotations of the turbine wheel to rotations of the electric synchronous generator. On the base frame, which also includes a complete oil kit, you can find the gear, which is connected to the turbine with a flexible link. The running machine is placed separately on a concrete base. Impermeability of the steam system is assured through a special contact valve. The running wheel is greased separately.

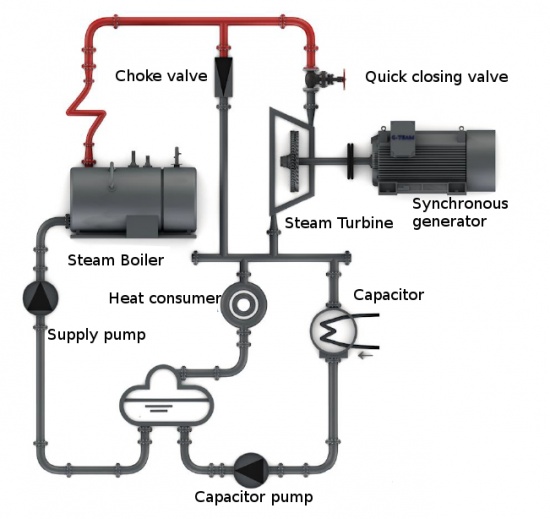

Steam turbine 560 can work both in condensation and counter-pressure system. It only depends on the user, if he prefers generating both heat and electricity or just wishes to use ST for generating electricity alone.

• For Mechanical drive: Yes
• For powering generator: Yes
• With an integrated gear: Yes

• Input steam pressure max. [MPa]: 4.0
• Input temperature of steam max. [°C]: 550
• Output steam pressure max. [MPa]: 1.4
• Generator output max. [kW]: 3,000
• Generator rotations [rpm]: 1500

Make yourself familiar with the advantages of steam turbines from G-Team. Their merits include a quick return on investment and a high efficiency, as they make use of excess heat that would normally go to waste.

Earn Money, Where Others Loose it. Create a New Source of Energy From Your Excess Steam.

The delivery of a complex solution reduces your installation costs. Our turbines are easy to operate and highly automated.

• Minimal installation size
• High heat efficiency in the range of 85% - 93,5 %
• Lifespan of at least 25years > even more efficiency

The Payback Period is Usually Under 5 Years
The payback period is influenced by the power of the steamturbine, its placement in the system and by any other personal request that you may have. However we can always guarantee a good ratio of price and benefits.

Efficiency

Making Use of Even the Smallest Sources of Steam

Small steam turbines use the energy from excess steam that would otherwise be wasted, therefore saving money by producing electricity.

Low Instalation Cost

Compared With Normal EPC Units, Our Delivery Costs are Much Lower.

Due to the complex solution, there are no extra construction costs for adding further devices. The costs can further be reduced, depending on the simplicity of installation which reflects your individual needs.
