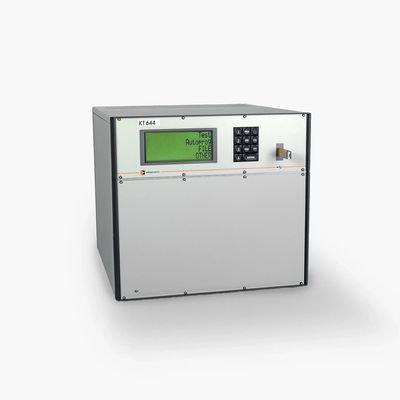

Adaptronic - Model KT 645 -Modular High-Voltage Wiring Tester System
The KT 645 high-voltage wiring tester tests voltage resistance up to 3300 VAC or optionally 4670 VDC and high current up to 2 ADC at 512 test points. The KT 645 high-performance wiring tester performs both sensitive connection tests from 0.5 Ω and demanding short-circuit tests up to 100 MΩ. The optional four-pole measurement as of 1 mΩ and component tests for resistors, capacitors, and diodes as well as precise connection and short-circuit tests are possible, and the device is expandable for accurate pin length and voltage measurements and with LCR measuring bridges. The NT Control LT software enables effortless test program management and complete documentation.The KT 645 can be used in intuitive stand-alone operation and can also be integrated into your production lines via the Microsoft network interface and USB ports. The ability to automatically learn what constitutes a good sample and the expandable I/Os increase efficiency.
KT 645
Metric
- High voltage test (AC) max.: 3300 V
- Test current (AC) min.: 30 mA
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 650 mm
- Width: 555 mm
- Dimensions/depth: 600 mm
- Weight: ca. 62 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 3300 V
- Test voltage (DC) max.: 4670 V
- Test current (DC) max.: 30 mA
- Test points, total max.: 512
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 4670 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 3300 V
- Test current (AC) min.: 30 mA
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca 136.7 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 3300 V
- Test voltage (DC) max.: 4670 V
- Test current (DC) max.: 30 mA
- Test points, total max.: 512
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 4670 V
- DIO voltage max.: 24 V
