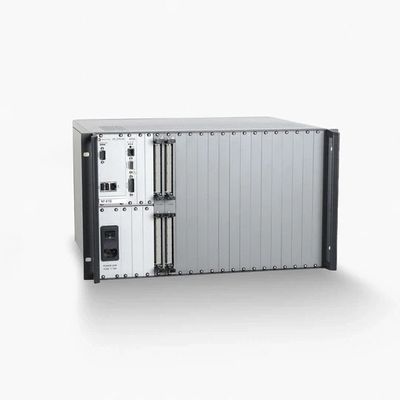

Adaptronic - Model NT 410 / NT 411 -Modular Low-Voltage Wiring Testers
The NT 410 / NT 411 low-voltage wiring tester with the NT Control control software tests voltages up to 25 V and currents up to 25 mA at 2048 or up to a maximum of 16384 test points. The NT 410 / NT 411 test device checks the quality of every electrical connection with a single device – from the smallest printed circuit board to the most complex cable system. The user-friendly NT Control software guides you step by step through the testing process. It automatically learns what constitutes a good sample and offers comprehensive results logging in a file, prepared for printers, or optionally via a database connection. Whether for small batches or large-scale production, the NT 410 / NT 411 also detects short circuits and tests single components, resistors, and capacitors. With a test voltage of up to 25 volts, it is perfectly suited for sensitive electronics. And with a wide range of connectivity options, it can be easily integrated into existing systems.
NT 410 / NT 411
Metric
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 275 mm
- Width: 450 mm
- Dimensions/depth: 395 mm
- Weight: ca. 11 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 25 V
- Test current (DC) max.: 25 mA
- Test points, total max.: 16384
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 25 V
- DIO voltage max.: 24 V
Imperial
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca. 24.3 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 25 V
- Test current (DC) max.: 25 mA
- Test points, total max.: 16384
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 25 V
- DIO voltage max.: 24 V
