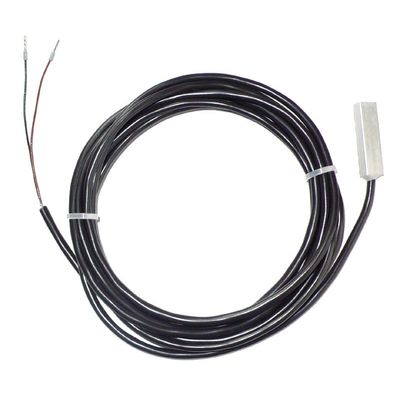

IMT - Model Tm-Pt1000 - Module Temperature Sensor with Platinum Resistance

Sensor Element Pt1000 Class A as per EN 60751
Sensor Housing Self-Adhesive Aluminium Block, 35 mm x 12 mm x 6 mm
Sensor Cable Length: 3 m, PUR coated, shielded (LiHC11Y, 2 x 0,25 mm²)
Weight Approx. 70 g
Operating Condition -40 to +90 °C (see below Installation Instruction)
Customs Number 90 25 19 00

Safety Instructions
The installation and assembly of electrical equipment must be carried out by electrically qualified persons. The sensor may not be used with equipment whose direct or indirect purpose is to prevent human death or injury, or whose operation poses a risk to humans, animals or property.

Electrical Connection
The sensors are designed for safety extra-low voltage (SELV) operation. For keeping the accuracy of the sensor a 4-wire measurement is strongly recommended. Due to the self-heating, the wire current affects the accuracy of the measurement. Thus, the same should not exceed 0.1 mA.

Installation Instructions
If mounted outdoors, avoid direct exposure to sunlight and rain to the sensor housing (Aluminium block). If necessary, provide protection from the sun and rain. The sensor element is mounted by gluing the Aluminium block directly to the measurement surface. The surface must be dry, clean and degreased. It is also recommended using an extra fixing with silicon or Sikaflex, particularly for module temperature above 75°C. Note: The module temperature measurement can be optimized by completely covering the sensor element. The sensor cable needs a cable grip close to the sensor housing.

Maintenance
The sensors should be checked once a year for damage, contamination and correct fitting.

User information
The sensor is designed for the measurement of a surface temperature. The warranty is for 1 year from the date of the invoice for the intended use. M&T does not accept any liability for possible losses or damage due to the incorrect usage of the sensor. Liability for consequential damages is excluded.
