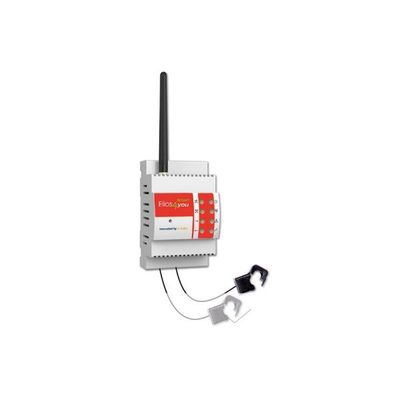

Elios4you Smart - Model E4U-S - Monitoring and Self-Consumption Device
FromAstrel Group Srl
Elios4you Smart is a monitoring and self-consumption device for single-phase PV systems rated up to 12 kW, allowing automatic control of up to four wireless accessories for managing self-consumption. With the “Elios4you” App, besides monitoring the production of their photovoltaic system simply and intuitively, users can also programme the activation of electrical appliances according to the level of surplus energy produced, using the wireless Smart Plug RC and Smart Switch RC. Elios4you Smart is compatible with other radio accessories for managing self-consumption.
Most popular related searches
energy production data
power grid connection
photovoltaic system
energy production
single phase UPS system
power grid
solar photovoltaic
photovoltaic
UPS system
power monitoring
- For single-phase systems of up to 6.0 kW rated power (grid connected)
- Universal: whatever the type of inverter
- Configuration and control using “Elios4you” free App, even remotely (with internet connection using ADSL router). Available on App Store and Google Play.
- Programmable relay for self-consumption
- Control of up to 4 accessories with wireless connection
- Programming of wireless power sockets using App according to available energy produced
- Data displayed in real time on smartphone/tablet even remotely
- General specifications Control system for single-phase photovoltaic systems with Wi-Fi connection and App for smartphone/tablet
- Power supply 230Vac (±10%) 50/60 Hz 2W
- Radio specifications Wi-Fi 802.11b/g/n
- Access point (AP) Station (STA), B,G,N or mixed mode
- ZigBee 2.4 GHz
- Memory Data log up to two months, in the event of no connection to tablet, with sampling every 15 minutes
- Status displays nr. 8 x Led
- Connections Screw terminals for power connections, measurement CTs, alarm inputs and control outputs
- Current measurement With split core CT (internal Ø 15 mm max)
- Antenna External antenna on SMA RP screw connector for data transmission via Wi-Fi
- Outputs Relay output (max 10A @ 230Vac), control output 0-10Vdc
- Inputs nr. 2 x voltage-free alarm contact (NO)
- Environmental parameters Operating conditions: 0 to +50 °C; <80% RH non-condensing
- Storage conditions: -20 to +70°C; <80% RH non-condensing
- Degree of protection IP20
- Conformity Directives 2014/30 EU; 2014/35 EU; 99/5 EEC; 2011/65 EU; ETSI-EN 300 328; ETSI EN301 429; EN 61326-1; EN 61010-1
- Dimensions (L x H x D) 4-module DIN rail housing 72 x 110 x 60 mm
