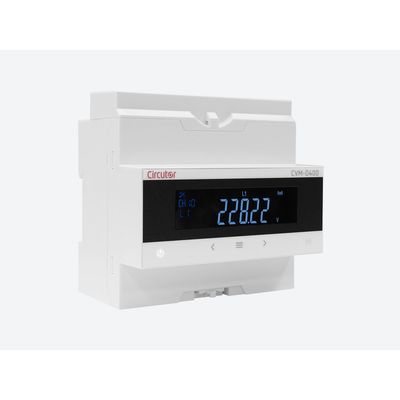

Circutor - Model CVM-D440-MC - Multi-Channel Network Analyser
CVM-D440-MC, Multi-channel network analyser with memory, DIN rail. The CVM-D400 series are multi-channel power analysers designed for reading multiple loads or circuits (Branch Circuit Monitoring). These devices can manage up to 12 single-phase or 4 three-phase lines or loads, or any combination of them in a single device.
They also allow each type of consumption to be labelled, grouping together the total consumption of all the loads destined for the same purpose without the need for any type of programming. The results are automatically displayed on screen or via communications. The devices are configured via an integrated web interface, accessible via Wi-Fi or Ethernet, or directly from the MyConfig App. Both options allow the connection to be checked and modified via the ‘autowiring’ option, avoiding wiring errors and saving time during commissioning.
- Measurement of electrical parameters in multi-channel installations, such as data processing centres and switchboards of single-phase loads.
- Simultaneous measurement at 4 different points in three-phase installations
- Its compact size is perfect for assembly on electric panels.
Voltage measurement circuit
- Voltage measuring range: 120... 300 V~Ph-N / 120 ... 520 V ~ph-ph
- Frequency measuring range: 45…65 Hz
- Input impedance: 0,4 MΩ
- Minimum measurement voltage (Vstart): 120 V ~
- Installation category: CAT III 300 V
- Sampling frequency: 45…65 Hz
- Maximum input voltage consumption: 5…8 VA
