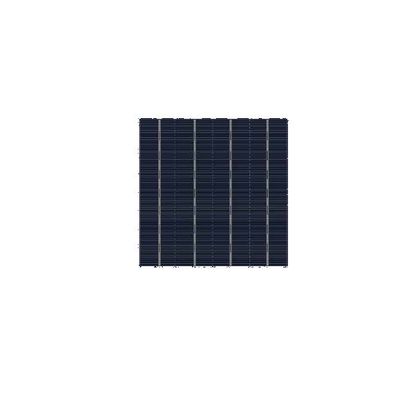

RESERV - Model 624 Series L1 -Multi Crystalline Silicon Solar Cells
RenewSys’ production processes are automated from the incoming silicon wafer inspection/classification to the final cell sorting. The surface of RESERV 624 cells are processed through acid texturization and have an isotropically textured surface. The cells are manufactured and tested for optimum performance and processing characteristics. Our Quality Control systems include checking every cell for mechanical faults, apart from electrical performance.
Product - Multi Crystalline Silicon Solar Cell
Substrate - P-type Multi Crystalline Silicon Wafer
Device Structure - n+ / p / p+
Dimensions - Size: 156.75mm x 156.75mm ± 0.5mm; Average Thickness: 200 ± 20μm
Front:
Blue Anti-Reflective Coating (Silicon Nitride)
Acid textured surface
1.05 ± 0.1 mm Silver bus bars
Negative pole (-)
Back:
Full-surface Aluminum BSF
1.50 ± 0.1 mm Silver bus bars
Positive pole (+)
- High Conversion E ciency
- Good Color Uniformity
- Statistical Process Control
- PID Free
- Focused in house R & D
- ISO 9001 Certi ed
