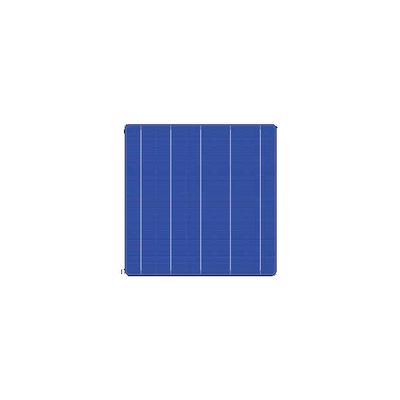

RESERV - Model 625 Series L1 -Multi Crystalline Silicon Solar PV Cells
RenewSys RESERV 625 PV Cells are manufactured and tested for optimum performance and processing characteristics. Our Quality Control systems include checking every cell for mechanical faults, apart from electrical performance. Our production processes are automated from the incoming silicon wafer inspection/classification to the final cell sorting. The surface of RESERV 625 cells are processed through acid Texturization and have an isotropically textured surface.
Product - Multi Crystalline Silicon Solar PV Cell
Substrate - P-type Mul Crystalline Silicon Wafer
Device Structure - n+ / p / p+
Dimensions - Size: 156.75mm x 156.75mm ± 0.25mm; Average Thickness: 200 ± 20μm
Front:
Blue Anti-Reflective Coating (Silicon Nitride)
Acid textured surface
0.8 ± 0.1 mm Silver bus bars
Negative pole (-)
Back:
Full-surface Aluminum BSF
1.4 ± 0.1mm Silver bus bars
Posi e pole (+)
- High Conversion Efficiency
- Good Color Uniformity
- Statistical Process Control
- On the fly 100 % EL testing
- Focused in house R & D
- ISO 9001, OHSAS 18001
- certificated
- PID Free
