Guinard Energies Nouvelles

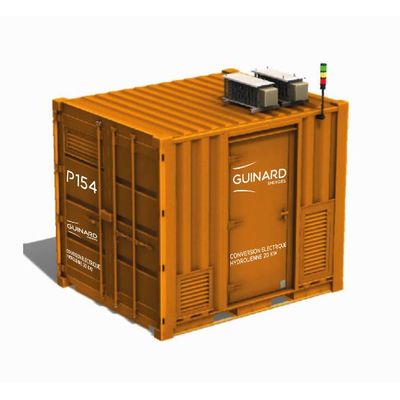

Model C154 -Multi Energies Box

SHARE
Developed by Guinard Energies and its partners, this container of regulation, conversion and storage includes all the organs dedicated to the operation and supervision of your hybrid production plant composed of one to several P154 turbines. Capable of hosting an auxiliary production source (photovoltaic, wind, fuel cell, ...) and a battery of several kWh, this device will allow you to answer all the problems of electricity production, that you be in isolated site situation or connected to the network.
Most popular related searches

Max power tidal: 20 kW

Auxiliary input max power: 20 kW

Maximum AC output power: 30 kW

AC output voltage: 230/400 Vac 50Hz

Storage capacity: 0 - 200 kWh

Weight: 4500 kg

Dimensions: 3000 x 2500 x 2500 mm

Associated with our hybrid system of regulation conversion, we can create a micro network competing with the generators.
With a current speed of 2,5 m/s:Production off 270 kWh per day and 100 000 kWh annually

Un système complet:

  • 100 kWh of batteries
  • 5 kWc of photovoltaic panels
  • 30 kW inverter
A cost of electricity between 13 et 26 cts € /kWh
