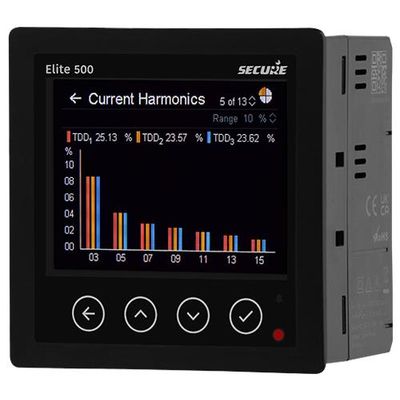

Elite - Model 500 - Multi-Function Power Panel Meter
The Elite 500 series is a set of devices with advanced power monitoring capabilities. It can be used for standalone device monitoring and power quality analysis as a part of the building management system (BMS). It can also process industrial controls and SCADA systems. It offers data logging, the ability to control IOs, and modular communication with multiple protocols for third party system integration. Elite 500 allows customers to select either a conventional type of CT or Rogowski coil input, depending on the application. These can be directly connected to the meter without the need for any additional integer.
Most popular related searches
power panel meter
multifunctional power meter
energy measurement
power quality analysis
power quality
power meter
power monitoring
energy consumption
grid wind turbine
power plant monitoring
- Energy transfer measurement and reconciliation
- Power plants, feeder monitoring, grid substations, wind turbines, renewables, industrial and commercial premises
- Online monitoring of energy exchange at various interface points
- Automation and system integration
- Process and factory automation
- Retrofit application up to 4000A can be served by using Rogowski coil
- Different field add-on modules supporting different applications like Modbus, BACnet, Profinet, IEC 61850 protocol support, analogue output and control IOs
- Various industries like oil and gas, mining, hospitals, malls, datacentres, etc.
- LV, MV, and HV switchgear
- Minimal integration cost through hot-pluggable modular options for multiple communication ports
- Support of multiple industry standard protocols: MODBUS RTU / TCP, Profinet, BACnet and IEC 61850 for integration with SCADA and other automation systems
- Field-replaceable hot-pluggable communication, PIPO, alarm and analogue output modules
- Supports energy efficiency measurement and LEED certification
- Large, high-resolution, colour display for both analytical and graphical views
- Options to have conventional CT or Rogowski coil
- TFT colour display showing vector diagram, bar chart, weekly /monthly energy consumption comparison
- 17 energy parameter measurement support including net and absolute energy parameters
- Energy resolution: 7+3-digit, instantaneous parameters: 4+3-digit, high-resolution page for energy measurement
- Class 0.2S / 0.5S accuracy for energy measurement
- Configurable favourite parameter on the display page
- Time synchronisation options through SNTP
- Power quality features including individual harmonics, THD, sag, swell, voltage unbalance and interruption counter
- Total demand distortion (TDD) factors and waveform quality indices like K factor and crest factor
- Positive, negative and zero sequence components
- Flexible time-of-day tariff, maximum demand / demand support, DST (daylight saving time)
- Supports PIPO / DIDO, alarm and analogue output module
- Alerts and events on configured parameters
- Dual loggers for instantaneous and energy parameters
- Dual socket support on Ethernet TCP IP module allows for simultaneous communication over Modbus.
- Supports RS485 Modbus along with any chosen ethernet protocol
