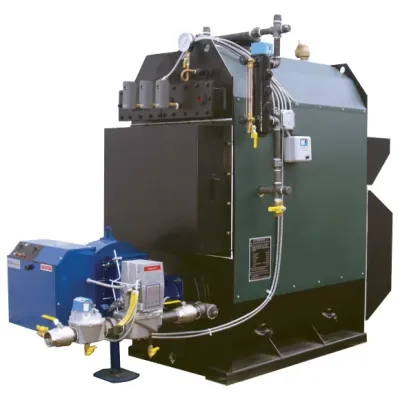

PEP - Model MPH Series -Multi-Pass Horizontal Low Pressure Steam Boilers
The MPH Series boilers are designed as multi-pass horizontal boilers that deliver low-pressure steam. These boilers, popular in industries like breweries and distilleries, offer a modified Scotch design with a three-pass fire tube configuration that significantly enhances fuel efficiency, achieving more than 83% fuel efficiency. The design ensures optimal circulation of flue gases, leading to prolonged gas retention which maximizes the energy extraction process. This efficiency makes them an ideal option in processes requiring consistent temperature control. Additionally, the narrow profile of the MPH Series facilitates easier installation in existing facilities, as their design allows them to maneuver through tight spaces and doorways seamlessly. They are an excellent choice for anyone combating rising fuel costs while requiring dependable temperature regulation in their operations.
The MPH boiler’s three-pass design is a smart choice for combatting rising fuel costs. The boiler achieves 83%+ fuel efficiencies by circulating the flue gases through the boiler three times. The longer flue gases stay in your boiler, the higher the efficiency achieved. The three-pass design is the most effective and fuel-efficient boiler design.
Ideal boiler for
- Breweries and Brewpubs
- Distilleries
- Schools
- Apartments
- Bakeries
- Laundromats
- Dairies
- and many more applications
The MPH series boiler is easier to install in existing construction – its narrow width makes it easy to maneuver through doorways and into place. When your process requires a very consistent temperature, the MPH series is a proven winner.
- 32 1/2 inch compact width (boiler sizes 5 – 80) makes it easy to move through your building and into place
- Space-saving, compact footprint
- 83%+ efficiencies, up to 90% with a high-efficiency boiler package
- Bottom hand holes for thorough boiler cleanout
- Quick open fireside cleanout doors
- Optional hot water coils provide 780 GPH to 2,460 GPH of potable hot water
- Pressure range: 15 PSI steam or 30 PSI water
- Size range: 5 BHP to150 BHP (14 models)
- Fuel choices: natural gas, LP gas, #2 oil, dual fuel, Methane / Biogas
- Arrives ready to install; fully assembled, piped, wired, and tested when the “Factory Package and Test Fire” option is selected
