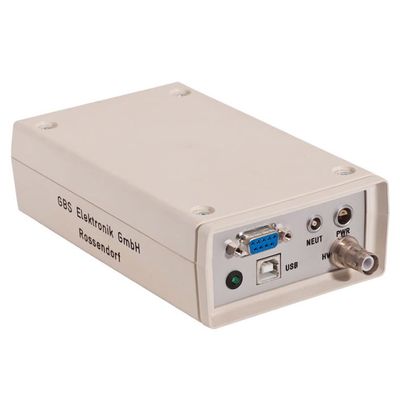

GBS Elektronik - Model NScan -Neutron Counter with Motor Control Unit
NScan is a computer controlled device that can measure signals from counter detectors (neutron counter, Geiger-Müller counter tube, etc.). The NScan has a motor control unit, which can be used to control the motion of the detector. A main application of NScan is automated verification measurements on deposits of nuclear waste. The communication and power supply is via the USB port of the computer.
Most popular related searches
high voltage power supply
high voltage power
high voltage supply
condenser protection
high voltage output
high voltage protection
General
- Dimensions 170 × 95 × 46mm
- Power supply USB - High Power Device
- Communication Interface USB 1.1
- Operating temperature range 0 - 40 °C
- Relative humidity up to 100 %, non condensing
- Protection class IP42
Counter Input
- Input Level Lo 0V - 0.8V
- Input Level Hi 2V - 5.5V
- Pulse width >100ns
- Dead time <500ns
- Number of time channels 65536
- Measuring time per channel 0.2s - 51s (step 0.2s)
- Channel depth 24bit (16Mcounts)
Preamp power supply
- Output voltage 5V ± 5% or 12V ± 5% (selectable by internal switch)
- Output current 50mA, short circuit protected
High voltage power supply
- Output voltage range 0V - 2000V
- Output power <1W
Motor Control unit
- Input level Lo 0V - 0.8V
- Input level Hi 2.0V - 5.5V
- Output level Lo 0V - 0.6V
- Output level Hi 5.0V - 5.5V
- Pulse width Start / Stop 1ms
- Pulse width INC_PULSE >500ns
- Pulse width STOP_IN >1.5ms
- Counter depth of INC_PULSE counter 16bit (max. 65536 pulses possible for one scan)
