Niche - Model 30-Series - Shell and Tube Heat Exchangers

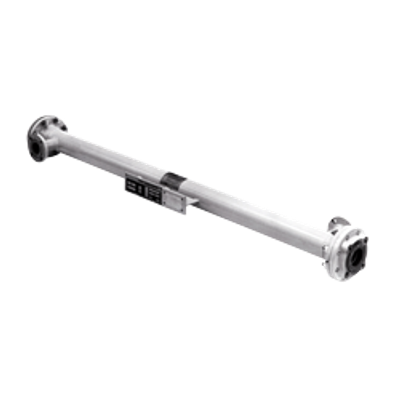

Shell-and-Tube Heat Exchangers 30-Series Mid-Size (4 inch shell), In lengths up to 11 feet, this series uses a single-pass, typically counter-current flow design. Tube bundles are joined together to create honeycomb tube sheets. Heads are fluoropolymer-lined, and the flexible tube bundle is easily removable for maintenance. Carbon steel shells are standard; other shell material is available on request. Metal shells are ASME coded and feature TEMA/ANSI end nozzle connections.
