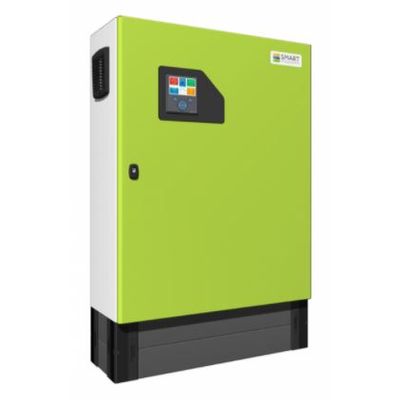

SmartEnergy - Model DC 3/10 (w/o Batteries) -Off-Grid PV Storage
Off-grid capable PV storage solution with 3kVA / 11.5kVA 230V AC system / transfer power and 10kWp PV power (2 MPPTs); 3-phase power distribution with phase coupling, bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation possible.
Most popular related searches
photovoltaic power
mounting bracket
circuit breaker
charge controller
power distribution
inverter
photovoltaic system
off-grid system
distributive power
distributed power
- Inverter: VE MultiGrid 48/3000/35-50
- PV charge controller: 2x VE BlueSolar MPPT 150/85
- Battery voltage: 48V
- Nominal AC power (25°C): 3.0kVA / 230V (1-ph)
- Max. PV power: 10.0kWp
- Number of MPPTs: 2
- Max. PV input voltage: 150V
- Housing: IP54 wall-/ground-mounted cabinet from powder coated steel plate incl. wall mounting brackets
- Ventilation: temperature controlled up to 60m³/h
- Monitoring: display / (remote) control / datalogger unit VE ColorControl GX
- AC fuse IN/OUT: 50A circuit breaker type B
- DC battery fuse: Fuse switch disconnector (size 00 – 80V DC) 100A (PV charger) / 150A (inverter)
- Features: grid & plant protection (VDE AR N4105…); uninterrupted bypass switch with phase coupling
- Additional outputs: changeover relay K1+K2 (inv); NO contact (CCGX); temp. sensor (PV); ETH (CCGX); 230V AC 1A AUX
- Weight: 93kg
- Dimensions (wxhxd): 800mm x1000mm x300mm
