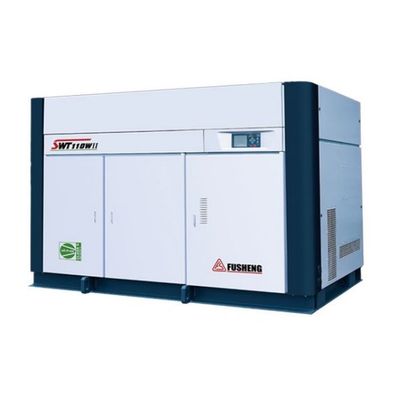

Fusheng - Model SWTII/III Series - Oil-Free Screw Compressor
The SWT oil-free screw compressor series works on a dry compression principle and no lubricating oils are required throughout the entire compression process. The series is ISO8573.1 Class 0 certified and supplies 100% oil-free compressed air. It is designed with a sophisticated processing rotor, gear drive, and a reliable seal combination to provide high quality compressed air. It has long lifespan and a wide scope of applications. The unit is CAD integrated, designed, and made; it employs advanced patented VDT dew point control to monitor the temperature and humidity of the compressed air and to enhance compression efficiency. The drawer-type design enables easy maintenance and repair. The SWTII 75 to SWTII 250 compressors are designed to run on operating pressure ranging from 7.0 to 10.0kg/cm2G and are complete with water-cooling models. The discharge volume ranges from 18.7m3/min to 41.7m3/min to supply 100% oil-free clean compressed air.
- We use ultra-thin coating of international patented technology, which shows amazing adhesion and durability under the relevant test, and the light weight of the coating itself prevents the possibility of shedding.
- Exclusive patented "2 atmospheric vent holes structure" prevents lubricating oil from entering the compressed air chamber through the shaft seals, even if unloading for a long time, the compression chamber is maintained 100% oil free.
- The Airend and motor of the compressor are driven by gears. No coupling design to reduce mechanical loss.
- The increased cooling area not only provides high heat exchange efficiency, but also provides sufficient allowance for the compressed air to pass through the cooler at once. The extremely low pressure drop results in higher compression efficiency.
- Reduce pressure modulating band utilizing a pneumatic diaphragm action butterfly valve for unloading. Pressure band is decreased from 0.1MPa to 0.05MPa, eliminating unnecessary energy consumption by preventing unnecessary pressure rise.
- Electronic controller with large LCD Panel can simplify daily operation and management. ·Monitor various information on air compressor status, display maintenance, alarm, emergency stop information and their corresponding countermeasures, helps prevent emergency stop and rectify it quickly and effectively.
- Has an energy-saving logic function to force the compressor to unload after the loading time has exceeded a minimum. ?Intelligent load/unload cycle (23 Sec) ?Reduce pressure band by forced unloading to eliminate unnecessary energy consumption.
