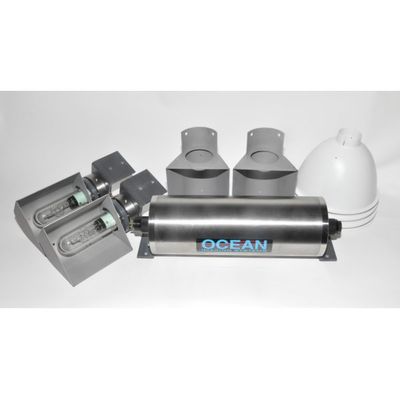

OIS - Model 3831 -Strobe
The 3831 strobe is our “workhorse” strobe and is available in several housing, power, and mechanical configurations. It is well suited for most applications, including intensive survey work. The datasheet outlines many of the options available for high-powered strobe applications.
The Ocean Imaging Systems (OIS) 3831 strobe is available in several power ratings from 100 to 600 joules (W-S); several housing options (aluminum, 316SS, 17-4SS, or titanium), and can be supplied either self powered, or configured for an external power source.
Additionally, OIS can supply strobe components for integration within the customers housing. All OIS strobes feature high efficiency high voltage power supplies (~90%) and have the capacity to be put into a low power standby state. OIS also designs and manufactures custom strobes for a broad range of military, offshore and scientific applications
The most common version of the 3831 features an internal rechargeable NiCad battery which not only supplies power for the strobe, but also for the companion Digital Still Camera (DSC 24,000). Thus a complete, stand alone camera system may be configured with the strobe and camera alone.
Custom-designed configurations are available, in power outputs as high as 600 joules. All through-hole electronics construction ensures maximum reliability and future reparability.
- Power: 100-600 Joules (watt-seconds)
- Recycle Time: 1 to 6 Seconds, depending on output power
- Operating Voltage: 23 to 33 VDC Standard
- Power Source: Internal Battery, or optionally Externally Supplied
- Depth Rating: 2,000 Meters to 6,000 Meters
- Housing material: Aluminum, Titanium, or Stainless Steel
- Configuration: Remote Flash Head – one supplied, 2nd head optional, up to 4 possible
