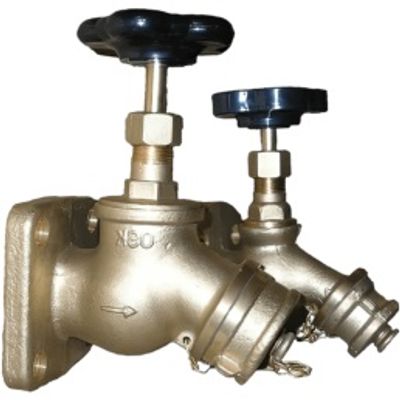

O.S.K. - Model MS58 BRASS | PN6 -Drain Valves for Transformer Oil
O.S.K. ÇAVUŞYAN Brass Drain Valves for Transformer Oil, DN 15 and DN 32. Convenient to take oil samples, body is made of MS-58 brass, with NBR gland packing, seat with metal packing, flange connection is according to DIN 2501 PN 6 at the input, Outflow hole is concealed with male thread at the end, closing cap fastened with a chain to the main body.
Most popular related searches
- Body: MS-58 Brass
- Bonnet: MS-58 Brass
- Disk: MS-58 Brass
- Seat Rings: MS-58 Brass
- Bonnet Gasket: Frenzelit (Aramid Fibres and NBR)
- Stem: MS-58 Brass
- Packing: NBR (Nitrile Butadiene Rubber)
- Packing Nut: MS-58 Brass
- Handwheel: Non-Metal
- Handwheel Nut & Washer: Stainless Steel
- Gasket for Closing Cap: Polyamide
According to DIN 48562 nominal pressure (PN): 6 bar for DN 15 and 6 bar for DN 32
- Test Liquid: Water at Room Temp
- Body Test: 20 Bar
- Disc Test: 20 Bar
- Test Standard No: TS 457
Transformet oil(maximum 10 bar, 120 C)
Water (non-potable)
