Rauscher & Stoecklin offers a range of overhead line disconnectors and load-break switches designed for distribution overhead lines. These highly reliable switches can be installed horizontally or vertically on wooden, concrete, and steel poles, making them versatile for various applications. They handle a rated current from 400 A up to 630 A and voltage options of 20 kV and 30 kV. The switches are made from high-quality materials, ensuring optimal power transmission with minimal friction. They feature an oil-poor arcing chamber with a quick-acting switching mechanism for faultless disconnection, enhancing the system's reliability. Installation and maintenance are simplified, as these devices are practically maintenance-free and easy to set up on-site. The products have a mechanical life of up to 10,000 cycles, which helps reduce investment costs over time. The company offers standard solutions as well as custom-made options to meet specific client needs. Examples include the MHL load-break switch with a low-oil extinguishing chamber and the MLF disconnector for de-energized state isolation.

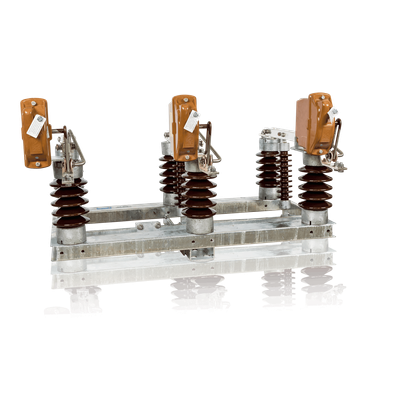

For the use in distribution overhead lines, we offer disconnectors and load-break switches with an earthing option. The highly reliable switches are easy to install and can be mounted horizontally or vertically on wooden, concrete and steel poles.
Rated current: from 400 A up to 630 A
Rated voltage: 20 kV and 30 kV
Our use of the best materials and our cutting-edge manufacturing process mean that the switches are highly efficient in all environmental conditions. The linkage guide consists of two guide rollers mounted in parallel, with minimal residual friction and therefore optimum power transmission.
The connection, joint and coupling parts are adapted to the assembly situation in question and are supplied in the required quantity. Our comprehensive aftersales services allow you to concentrate on your core business.
The oil-poor arcing chamber has a quick-acting switching mechanism, which always guarantees faultless disconnection regardless of the overhead line switch’s switching speed.
The switches are easy to install and set up on site and are practically maintenance-free.
The switches guarantee a mechanical life of up to 10,000 cycles. Investment costs can be decreased thanks to the switches’ long service life and reliability in all environmental conditions.
