Biotech Energietechnik GmbH

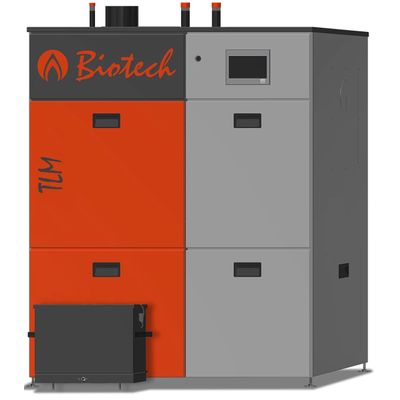

Biotech - Model Top Light M MBW up to 14,9 kW -Pellet Boiler with Manual Filling
The optimal pellet heating system for the detached house. Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.
Most popular related searches
pellet boiler
pellet heating system
combustion controller
firing system
pellet heating
combustion control
heat exchanger
heat exchanger cleaning
air heat exchanger
Power range 5.3-17.5 kW
- Lambda probe cleaning
- Stainless steel firing system (high temperature resistant) with automatic cleaning
- Primary and secondary air regulated with air mass sensor
- Heat exchanger with automatic cleaning
- automatic ignition of the pellets
- Ash drawer with ash compression
- High performance suction turbine with vacuum system
- Pellet hopper for manual filling (optionally upgradable to fully automatic) with approx. 150 kg pellet volume (at a bulk density of 650 kg/m³)
- speed-controlled induced draft fan
- Microprocessor control with fully graphic display
- Remote control via smartphone, tablet, PC and laptop possible
- unique DCC combustion control using air mass sensors and lambda probe
- Contact for external request
Minimum clearances masonry
1: 900 mm *
2: 400-900 mm
3: 100-300 mm *
4: 50-200 mm *
2: 400-900 mm
3: 100-300 mm *
4: 50-200 mm *
1*) with installed ash discharge 1200 mm
3*) Recommendation 250 mm, otherwise increased effort (costs)
4*) with automatic ash removal at least 500 mm
3*) Recommendation 250 mm, otherwise increased effort (costs)
4*) with automatic ash removal at least 500 mm
