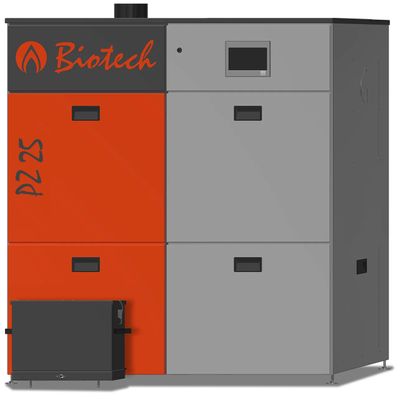

Biotech - Model PZ 25 RL MBW - 25 kW -Pellet Boiler with Manual Filling
The optimal pellet heating system for a large single-family or two-family house. Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.
Most popular related searches
pellet boiler
pellet heating system
combustion controller
firing system
pellet heating
combustion control
heat exchanger
heat exchanger cleaning
air heat exchanger
Power range 6.7-25,0 kW
- Lambda probe cleaning
- Stainless steel firing system (high temperature resistant) with automatic cleaning
- Primary and secondary air regulated with air mass sensor
- Heat exchanger with automatic cleaning
- Automatic ignition of the pellets
- Ash drawer with ash compression
- High performance suction turbine with vacuum system
- Pellet hopper for manual filling (optionally upgradable to fully automatic) with approx. 187 kg pellet volume (at a bulk density of 650kg/m³)
- Speed-controlled induced draft fan
- Microprocessor control with fully graphic display
- Remote control via smartphone, tablet, PC and laptop possible
- Unique DCC combustion control using air mass sensors and lambda probe
- Contact for external request
1: 1000 mm
2: 400-900 mm
3: 100-300 mm
4: 500-900 mm
5: 2200 mm
2: 400-900 mm
3: 100-300 mm
4: 500-900 mm
5: 2200 mm
*) Recommendation 250 mm, otherwise increased effort (costs)
