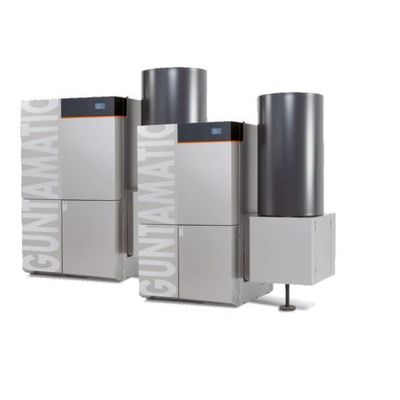

Guntamatic-Heiztechnik - Model Biocom 400 kW - Pellet Heating System

• Ecological and economical heating convenience

• Self-cleaning industrial step grate for adjusting the ember bed size and boiler output without generating slag
• Clean primary air slots and optimum combustion through moving step grate technology
• Up to 95 % efficiency
• Self-cleaning tube bundle heat exchanger ensures long operating times without maintenance or cleaning measures
• Automatic adjustment of the fuel charge, grate speed and air intake
• Suitable for pellets class ENPlus A1 and ENPlus A2
• Ash screw conveyor and moveable ash box or fully automatic vacuum ash discharge into a 200 litre drum (option) for the highest cleaning convenience
• Well thought-out and user friendly interface with touchscreen
• Control by mobile (option)
• High grade components for maximum operational reliability
• Multi-stage safety concept through stoker unit controlled by lambda probes, protects against back burning and unpleasant surprises
• First class spare parts service from our own production
• Secure cascade operation prevents total downtime
• Modular pellet discharge concept, suitable for almost every situation
• Robust, gentle screw conveyor system for high operational reliability
• Minimum power consumption thanks to energy efficient discharge
• Extremely robust pellet discharge screw conveyor with sprung arm agitator

The wood pellets are gasified on the industrial step grate, where primary air is supplied at an ember bed temperature of around 800 °C. The amount of combustion air and fuel charge is regulated by means of a lambda probe, so that the system achieves a level of efficiency of up to 94 %. With the aid of secondary air, the generated combustion gases are cleanly and efficiently converted into energy in a large rotating combustion zone.

Conventional pellet heating systems still require regular cleaning. The Biocom system, on the other hand, cleans the heat exchanger and step grate (with the exception of a general clean-up) automatically. Large ash boxes reduce the remaining effort to a minimum.

Guntamatic storage systems operate with suction discharge and screw conveyor dosing, resulting in outstanding operational reliability and durability. When the fuel is completely used up, there is no need for the annual storage room cleaning. Depending on preference, a high grade steel/mesh hopper or sloping floor storage room with discharge screw conveyor are available.

Fully automatic control of appliance and storage room functions, as well as regulation of the ambient climate utilising the most advanced control technology. Individual adjustments can be made easily via the clear touchscreen controller, possibly via a room control station or a smartphone app.

In order to ensure that our appliances meet our high quality aspirations and those of our demanding customers, we manufacture them completely and exclusively using the best possible materials in our ultra-modern Austrian factory.
