Pelton Turbine

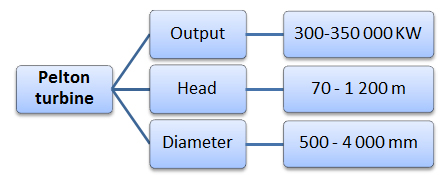

Since 1904 CKD Blansko has manufactured more than 53 Pelton turbines and they operate at 28 sites. Their total output amounts more than 1 678 MW. CKD Blansko Holding can produce and supply Pelton runners of welded structure. The runner consists of a disc forged together with half of the buckets, while the remainder of the buckets is welded in. They are of the weld is beyond the parts exposed to fatigue. From a technical/economical point of view, welded Pelton runners are an optimal solution. We provide horizontal type with max. 2 nozzles, vertical type with max. nozzle. Hydraulically controlled coaxial nozzles are used for multi-nozzle arrangements. The operating range is shown in the Q/H diagram. Runner diameter up to 4 000 mm.
-
