Nel - Model MC Series -PEM Electrolyser

SHARE

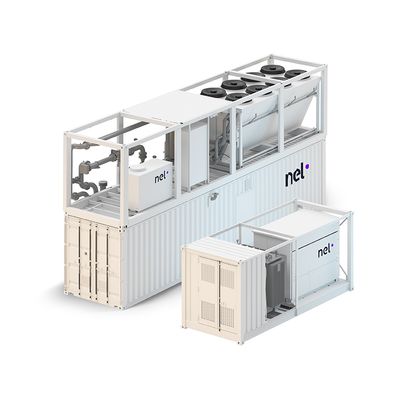

The MC250 and MC500 electrolysers deliver megawatt scale performance in a containerized form for easy outdoor installations. The units feature either one or two 1.25 MW stacks with a shared balance of plant, providing a reliable solution with minimal maintenance. Multiple units can be grouped together for larger hydrogen output needs. Typical applications include renewable energy storage, industrial process gas, and hydrogen fueling.
Most popular related searches
proton exchange membrane
renewable energy storage
energy storage industry
energy storage
biofuel product
biofuel production
fuel cell
hydrogen fuel cell
hydrogen fuel
hydrogen fueling

• > 99% availability
• 0-100% variable output
• Auto fill water level control
• Cold start less than 5 minutes
• Full ramp up/ramp down in seconds
• Indoor or outdoor options
• Instantaneous response to variable requirements
• Load following
• Minimum maintenance
• Remote monitoring and control

• Ammonia Production
• Annealing
• Autoconsumption
• Biofuel Production
• Biomethanol Production
• Biogas/Biomethane Production
• Blast Furnace Injection
• Carbon Capture
• Catalytic Atmosphere
• Chemical Feedstock
• Combustion
• Cylinder/Tube Truck Filling
• Desulfurization
• Direct Gas Injection
• Direct Reduced Iron
• Energy Storage
• Extreme Ultravolite Lithography
• Fertilizer Production
• Float/Flat Glass Production
• Fuel for Fuel Cells
• Fuel for Hydrogen Internal Combustion Engines (HICE)
• Fuel for Turbines
• Grid Stabilization
• Heat Treating
• Hydrogenation
• Methanol Production
• Optical Fiber Processing
• Powder Metallurgy
• Powder Processing
• Protective Atmosphere
• Remote Power
• Sintering
• Space Heating
• Thermal Spray
• Waste to Synthetic Fuels

Description:

Fully-automated MW-class on-site hydrogen generator utilizing a modular containerized design for ease of installation and integration

Tri-mode operation (selectable):
• Command mode allows operation based on customer input current command
• Load following mode automatically adjusts output to match demand
• Tank filling mode operates with power-conservation mode during standby

Electrolyte: Proton Exchange Membrane (PEM) – caustic-free

Nominal Production Rate:
MC250) 246 Nm3/h – 9,352 SCF/h – 531 kg/24 h
MC500) 492 Nm3/h – 18,704 SCF/h – 1,062 kg/24 h

Delivery Pressure – Nominal: 130 barg (435 psig), full differential pressure H2 over O2

Power Consumption at Stack per Unit of H2 Gas Produced:
MC250) 4.7 kWh/Nm3 – 53.2 kWh/kg
MC500) 4.7 kWh/Nm3 – 53.2 kWh/kg

Power Consumption by System per Unit of H2 Gas Produced:
MC250) 5.2 kWh/Nm3 – 59.0 kWh/kg
MC500) 5.1 kWh/Nm3 – 57.3 kWh/kg

Purity (Concentration of Impurities): 99.95+% [H2O < 5 ppm, N2 < 2 ppm, O2 < 1 ppm, all other undetectable]

Purity (Concentration of Impurities with optional high purity dryer): 99.999+% [H2O < 5 ppm, -65oC
(-85oF) Dew Point, N2 < 2 ppm, O2 < 1 ppm, all other undetectable]

Start-up Time (from standby): < 8 min

Ramp-up Time (minimum to full load): < 15 sec

Ramp Rate (% of full-range): ≤ 7.4% per sec

Turndown Range: 1 to 100% (automatic)
