Nel - Model C Series - PEM Electrolyser

SHARE
The C Series electrolysers are ideal for a variety of industrial applications. Producing up to 30 Nm3/h of hydrogen gas at 99.999+% purity, these units replace the need for hydrogen tube trailers or liquid hydrogen storage. They can be containerized, and offer facilities flexible siting and reduced operational safety risks associated with delivered hydrogen.
Most popular related searches
liquid hydrogen storage
proton exchange membrane
biomethane production
fuel cell
hydrogen fuel cell
biofuel product
biofuel production
hydrogen storage
synthetic fuel
biogas biomethane
  • Auto fill water level control
  • Automatic leak detection
  • Compact size and quiet operation
  • Load following
  • Minimum maintenance
  • Modular and upgradeable
  • Report alarms

  • Ammonia Production
  • Annealing
  • Argon Purification
  • Autoconsumption
  • Biofuel Production
  • Biogas/Biomethane Production
  • Biomethanol Production
  • Blast Furnace Injection
  • Brazing
  • Catalytic Atmosphere
  • Chemical Feedstock
  • Chemical Vapor Deposition
  • Coatings
  • Cylinder/Tube Truck Filling
  • Desulfurization
  • Detector Fuel
  • Detector Gas
  • Direct Gas Injection
  • Direct Reduced Iron
  • Energy Storage
  • Extreme Ultravolite Lithography
  • Fertilizer Production
  • Flame Spray
  • Fuel for Fuel Cells
  • Fuel for Hydrogen Internal Combustion Engines (HICE)
  • Fuel for Turbines
  • Glass Polishing
  • Heat Treating
  • Hermetic Sealing – Glass to Metal
  • Hydrogenation
  • Isotope Separation
  • Metal Injection Modling (MIM)
  • Metalorganic Chemical Vapor Deposition (MOCVD)
  • Methanol Production
  • Motor Laminations
  • Nanotechnology
  • Optical Fiber Processing
  • Plasma-Enhanced Chemical Vapor Deposition (PECVD)
  • Powder Metallurgy
  • Powder Processing
  • Power Plant Generator Cooling
  • Protective Atmosphere
  • Purifier Regeneration
  • Remote Power
  • Sintering
  • Space Heating
  • Thermal Spray
  • Waste to Synthetic Fuels
  • Welding

Description:

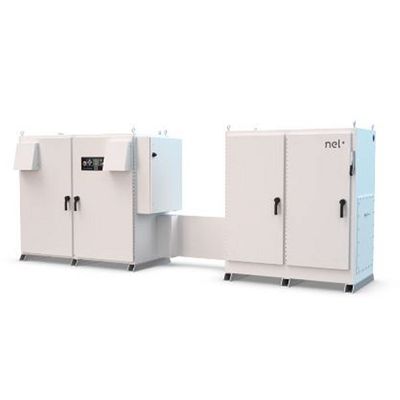

• On-site hydrogen generator in two integrated, automated, site-ready enclosure
• Load following operation automatically adjusts output 0 to 100% to match demand
• Full differential pressure, H2 over O2

Electrolyte: Proton Exchange Membrane (PEM) – caustic-free

Nominal Production Rate:
C10) 10 Nm3/h – 380 SCF/h – 21.6 kg/24 h
C20) 20 Nm3/h – 760 SCF/h – 43.3 kg/24 h
C30) 30 Nm3/h – 1,140 SCF/h – 65.0 kg/24 h

Delivery Pressure – Nominal: 130 barg (435 psig)

Power Consumption by System per Unit of H2 Gas Produced:
C10) 6.2 kWh/Nm3 – 16.3 kWh/100 SCF) – 69.9 kWh/kg
C20) 6.0 kWh/Nm3 – 15.8 kWh/100 SCF) – 67.6 kWh/kg
C30) 5.8 kWh/Nm3 – 15.2 kWh/100 SCF) – 65.5 kWh/kg

Purity (Concentration of Impurities): 99.999+% [H2O < 2 ppm, -72oC
(-98oF) Dew Point, N2 < 2 ppm, O2 < 1 ppm, all other undetectable]

Turndown Range: 0 to 100% net product delivery (automatic)
