Nel - Model H Series - PEM Electrolyser

• Auto fill water level control
• Automatic leak detection
• Compact size and quiet operation
• Load following
• Minimum maintenance
• Modular and upgradeable
• Purge airflow system
• Report alarms
• Water purity monitor

• Annealing
• Argon Purification
• Autoconsumption
• Balloon Lift Gas
• Brazing
• Catalytic Atmosphere
• Chemical Feedstock
• Chemical Vapor Deposition
• Coatings
• Cylinder/Tube Truck Filling
• Detector Fuel
• Detector Gas
• Energy Storage
• Extreme Ultravolite Lithography
• Flame Spray
• Gas Chromography – Carrier Gas
• Gas Chromography – Detector Fuel
• Glass Polishing
• Heat Treating
• Hermetic Sealing – Glass to Metal
• Hydrogenation
• Isotope Separation
• Metal Injection Modling (MIM)
• Metalorganic Chemical Vapor Deposition (MOCVD)
• Motor Laminations
• Nanotechnology
• Optical Fiber Processing
• Plasma-Enhanced Chemical Vapor Deposition (PECVD)
• Powder Metallurgy
• Powder Processing
• Power Plant Generator Cooling
• Protective Atmosphere
• Purifier Regeneration
• Sintering
• Thermal Spray
• Welding

Description:

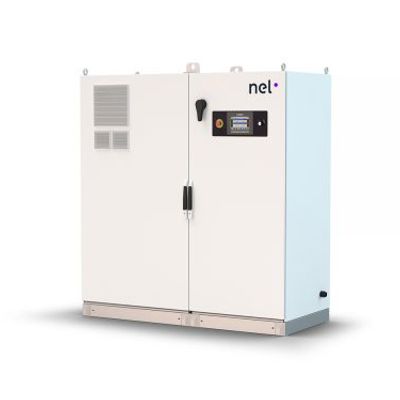

• On-site hydrogen generator in an integrated, automated, site-ready enclosure
• Load following operation automatically adjusts output to match demand
• Full differential pressure, H2 over O2

Electrolyte: Proton Exchange Membrane (PEM) – caustic-free

Nominal Production Rate:
H2) 2 Nm3/h – 76 SCF/h – 0.58 kg/24 h
H4) 4 Nm3/h – 152 SCF/h – 1.14 kg/24 h
H6) 6 Nm3/h – 228 SCF/h – 2.27 kg/24 h

Delivery Pressure – Nominal: 15 barg (218 psig); Optional 30 barg (435 psig)

Power Consumption by System per Unit of H2 Gas Produced:
H2) 7.3 kWh/Nm³ – 19.2 kWh/100 SCF
H4) 7.0 kWh/Nm³ – 18.5 kWh/100 SCF
H6) 6.8 kWh/Nm³ – 17.8 kWh/100 SCF

Purity (Concentration of Impurities): 99.999+% [H2O < 5 ppm, -65oC (-85oF) Dew Point, N2 < 2 ppm, O2 < 1 ppm, all other undetectable]

Turndown Range: 0 to 100% net product delivery (automatic)
