Quest One - Model PEM -MHP -PEM Hydrogen Electrolyzer

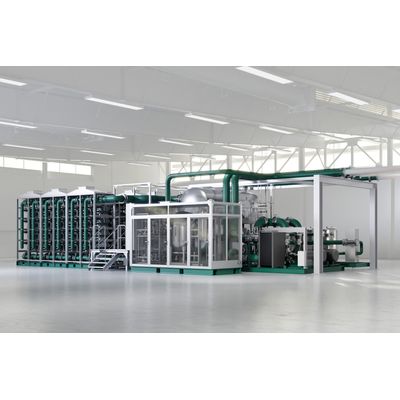

Modular, skid-mounted, ready-to-install: The Quest One MHP is a scalable platform for industrial production of green hydrogen based on PEM technology. 10-MW blocks can be combined into multi-MW systems for projects with an electrolysis capacity from 10 to more than 100 MW. The system is ready for indoor installation on pre-assembled skids. It is equipped with integrated process water treatment and an electrical power supply. Optionally, the system can be supplemented with fresh water and hydrogen treatment, as well as process heat recovery or oxygen utilization as required. The Quest One MHP electrolyzer stands out with its unrivalled system efficiency, high availability, and proven maintenance concept, which result in low hydrogen production costs and stable safe operation.
- Scalable Indoor-Solution with 77% system efficiency
- Industrial production of green hydrogen
- Combination of 10 MW blocks to multi-MW systems with electrolysis capacity of 100 MW and more
- H2 production nominal; 4,600 kg/d | 2,130 Nm3/h
- Energy consumption1 : 4.6 kWh/Nm3 H2 | 51 kWh/kg
- System efficiency1: 77 %
- Performance class: 10 MW
- H2 production modulation range: 213 – 2,130 Nm3/h | 10 – 100 %
- H2 purity including optional hydrogen purification : 3.0 or 5.0 (fulfils ISO 14687:2019 Table 2)
- H2 purity without optional hydrogen purification: Water saturated at 65°C and 30 bar(g)
- H2 output pressure : 30 bar (g)
- Load change: 30 s (minimal load to nominal load)
- H2O required quality including optional fresh water treatment: TrinkwV 2020 | EU Directive 2020/2184-EU
- H2O required quality without: optional fresh water treatment DI water (fully desalinated)
- DI water consumption nominal: 1,850 kg/h
- Dimensions LxWxH (Indoor): : approx. 10 x 24 x 4.5 m
- Temperature (Indoor): +5°C to + 40°C
