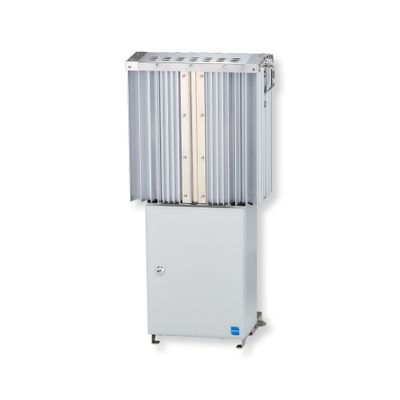

Ensto - Model PB50A-3P-200ADV -Phase Balancer
The Ensto Phase Balancer is designed to solve power quality problems in weak, 3-phase low-voltage distribution networks. It mitigates phase imbalances, reduces voltage flickers and harmonics, enables fast disconnection of power from the affected consumer connection point, and maximizes the utilization of existing low-voltage power distribution capacity.
- Standards
- Standards : EN 61000-3-3, EN 61000-6-2, EN 61439, EN 61000-6-3, EN 61000-3-2
- Dimensions
- Weight : 125 kg
- Height : 785 mm
- Width : 435 mm
- Length : 430 mm
- Dimensions l x w x h : 435 x 785 x 430 mm
- Electrical values
- Number of phases : 3
- Operating voltage : 230 V
- Nominal current A : 50 A
- Communication media : Modbus RTU RS-232
- Ratings
- Degree of protection : IP55
Pallet package
- Size : 1 pce
- Depth : 1200 mm
- Height : 500 mm
- Width : 800 mm
- Weight : 145.000 kg
- Volume : 480 l
The Phase Balancer offers multiple features that help utilities improve the utilization of the power distribution capacity. Phase Balancer is installed in parallel, which makes the installation fast and easy. This also allows installation without without disconnecting the power from the consumer. The Modbus interface enables communication of the operational status of the device to an upper-level system.
- Improved power quality – Corrects and stabilizes unbalanced three phase load, reduce flicker and total harmonic distortion (THD)
- Improved capacity of low voltage distribution network – Maximizes the existing distribution capacity and associated cost by means of balanced phases.
- Reduced energy losses – Minimizes unbalance-induced neutral current and distribution transformer losses.
- Improved electrical safety – Improves short-circuit capacity at the consumer connection point and allows shorter protection devices operation time.
- Cost-efficient – Enables minimal investment costs, as there is no need for network reinforcement nor service breaks.
- Compact and easy to install – Delivered with pole installation accessories
- Quick to commission - No settings or calibration required.
- Environmentally friendly – recyclable, free of oil.
