Middleton Solar

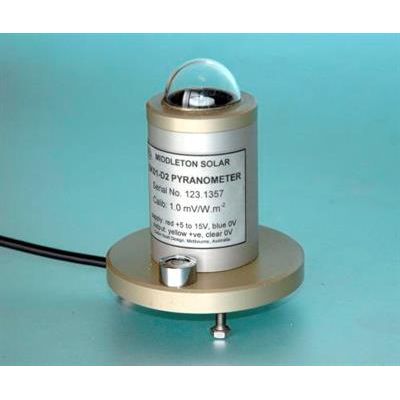

Middleton Solar - Model SK01-D2 and SK01-DP -Photodiode Pyranometer
FromMiddleton Solar
The SK01-D2 is a simple pyranometer for monitoring total solar global radiation on a plane surface. The SK01-DP2 version incorporates a special interference reflector to limit its sensitivity to the Photosynthetically Active Radiation region of the solar spectrum (400-700nm).
Most popular related searches
total solar radiation
pyranometer
global solar radiation
solar radiation
solar performance
solar monitoring
- Response time (to 95%) : 30ms
- Non-stability (per year) : < ± 2%
- Non-linearity : < 1%
- Directional response (30°- 80° zenith) : < ± 30 W.m-2 (ISO9060 2nd class)
- Spectral response (w.r.t clear sun), SK01-D2 : -6% (heavy haze) to +4% (bright cloud)
- Temperature response : < ± 0.15% per °C
- Tilt response : no tilt error
- Hard anodized aluminium for corrosion resistance.
- Glass dome to keep debris off the cosine corrected diffuser.
- In-built signal amplifier to give a millivolt output for easy masurement.
- Circular level and adjustable feet.
- Sealed to IP67 and fully weatherproof.
