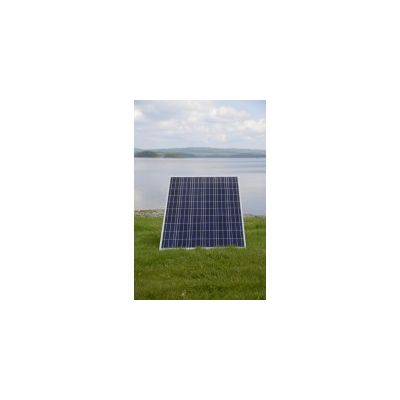

Photovoltaic Solar Modules
The modules from Windon is committed to provide highly competitive solar energy solutions at the highest quality to customer through; continual improvement, innovative technology, operational excellence, industry- wide expertise and excellent quality control.Windon will be at the forefront in the development of photovoltaic modules, by continually using the latest technology. We develop the clean, natural energy option, that our and future generations will benefit from. The customer shall experience Windon Module as the natural choice.
Windon also are the innovator of the unique PV-mou...
Windon also are the innovator of the unique PV-mounting system that cuts the working time for mounting the PV-modules to just a fourth of the time needed for a traditional mounting system. This makes deployment of PV-modules extremely cost-efficient compared to traditional mounting systems. On a big solar park, this might make the difference from failure to success. Windon AB and Essett Sweden AB want to build partnership and re-seller networks around the world.
Manufacturing of high-quality crystalline Solar Modules
- Made in Sweden.
- Optimized to produce more kWh per year then any other module.
- The most automatized PV manufacturing site in Europe.
- Employees with long experience in PV-module R&D and manufacturing.
Features:
- Solar Modules produced by Windon AB and Essett Sweden AB are designed for various markets and applications. High quality production, combined with strictest process control, ensure maximum lifespan and the highest performance.
- The robust construction is resistant to heavy wind and snow load.
- Special low iron glass with an antireflection treated surface achieves up to 2 % higher measured output power, however the modules gives 5-8% higher energy yield performance in the field during scattered and low light conditions, especially in morning, evening and in the winter months.
- High performance EVA, extremely stable cross-linking, will stay transparent and maintain the high energy yield over long period of time.
- All joints soldered or welded in Junction Box, to prevent contact corrosion an arcing.

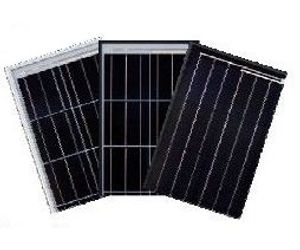

Product portfolio
- Moja Aluminum frame, white backsheet.
- Mbili Black frame, white backsheet
- Tatu Black frame, black backsheet
All products in portfolio can be manufactured with either poly or mono crystalline cells.

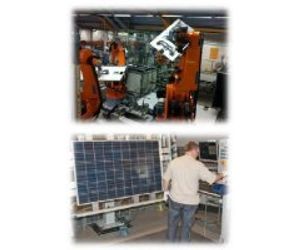

Production Site
Production Site
Modern machines, stable processes and own module Design and Development, gives a unique position to meet customer expectations. The staff is accustomed to the plant and very experienced.
Current capacity of 100 MW per year.
Automation
Automated to the highest level, thereby securing outstanding quality and module performance.
Quality control
The production site allocates its own test equipment, to ensure the high quality of the manufactured modules.
Each module is measured and visually inspected. Furthermore new module design and new components can be long term tested in own laboratory.
Specifications
- Module power: 230 - 275 Wp
- Dimensions (L x W x H): 1665 x 991 x 43 mm
- Module area: 1,65 m²
- Weight: 19 Kg
- Cell type: 156 x 156 mm, Mono or Multi–crystalline
- Number of cells: 60 pcs.
- Cells per bypass diode: 20 pcs.
- Number of bypass diodes: 3 pcs.
- Number of Bus bars: 3
- Front cover: High transparency low iron solar glass with antireflection surface treatment (modules can be ordered without AR-treatment).
- Front cover thicknesses: 3,2 mm
- Junction-box: Kostal (with 1,0 m cable and KSK4 connectors), IP65 rating (flush safe).
- Frame: Anodized aluminum, or black powder coating.
