PHYTEC phyCORE - Model i.MX 91/93 -System on Module
The phyCORE-i.MX 91/93 is a System on Module (SoM) designed by PHYTEC. It integrates the i.MX 91 and i.MX 93 processors from NXP`s i.MX 9x family, capitalizing on their Energy Flex architecture to achieve high computational performance while minimizing power consumption. The compact design is 36mm x 36mm, promoting its use in efficient, cost-effective applications. It supports enhanced security features like lifecycle management and secure booting, owing to its integrated EdgeLock® Secure Enclave. The module is pin-compatible with earlier models like the phyCORE-i.MX 6UL/ULL and the new phyCORE-STM32MP13x, facilitating scalability and extended product lifecycles. Its Direct Solder Connect technology optimizes manufacturing costs in large-scale production. This module targets applications requiring energy efficiency, advanced computing, and robust security, crucial for industries adopting embedded systems.
High processing power, low power consumption, pin-compatible with i.MX 6UL/ULL and STM32MP13x SOMs for scalable applications.

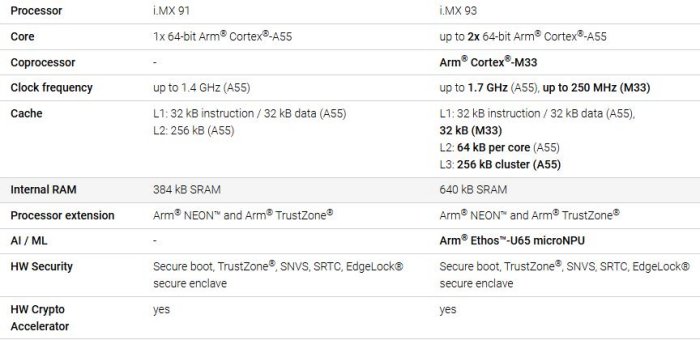

- Can be equipped with NXP i.MX 91 or i.MX 93
- i.MX 91, 1x Cortex®-A55 with up to 1,5GHz
- i.MX 93, 2x Cortex®-A55 up to 1,7GHz; real-time MCU; NPU
- Pin compatible to phyCORE-i.MX 6UL/ULL and phyCORE-STM32MP13x
- One endpoint design for scalable performance from 1330 DMIPS up to 9000 DMIPS
- Start of development with cost-optimized design and expansion over the course of the product life cycle
- Advanced hardware security
- Advanced security with built-in EdgeLock® Secure Enclave
- Tamper, WDT, temperature and voltage monitoring
- Integrated functionality
- up to 256GB TLC eMMC
- On-board Ethernet PHY and voltage converter circuitry
- 159-pin DSC layout supports dual LAN, dual USB, dual
CAN FD, UART, I2S /SAI, 12-bit ADC, parallel LCD,
camera etc - Dimensions 36mm x 36mm, low profile (approx. 3mm)
- Development advantages
- Fully customized Linux® operating system
- FCC/CE product reference circuit
- Worldwide technical support
- Rapid Development Kits available from 09/2023.
The phyCORE-i.MX 91/93 can be equipped with both the i.MX 91 and the i.MX 93 from the i.MX 9x family from NXP. Thanks to the innovative Energy Flex architecture from NXP, the module with both processors offers high computing power with low energy consumption. The integrated EdgeLock® Secure Enclave allows security features such as lifecycle management, tamper detection, secure booting and a simplified path to certifications. Measuring only 36 mm x 36 mm, the module enables the development of powerful, cost-effective and energy-efficient applications.
The SoM is fully pin-compatible with the best-selling phyCORE-i.MX 6UL/ULL and the new phyCORE-STM32MP13x. On the one hand, this offers the possibility of using the phyCORE-i.MX 91/93 as a successor to the i.MX 6UL/ULL in order to extend the lifespan of the entire product or to upgrade it to higher computing power and additional features such as machine learning. On the other hand, the pin compatibility with the new phyCORE-STM32MP13x allows new projects to decide on one of the platforms after evaluating the performance requirements. Even the development of different end product variants with different performance classes and features, ie applications that are scalable in terms of price/performance ratio, is possible. The new phyCORE-i.MX 91/93 offers upgrade paths, scalable computing power and access to the latest technologies, while at the same time maintaining the longevity of Productsn and applications ensures and improves.
The fully industrial grade phyCORE-i.MX 91/93 is characterized by its price-optimized bill of material. Thanks to Direct Solder Connect technology, the module is suitable for large-scale production and the manufacturing costs of the end application are significantly reduced.
