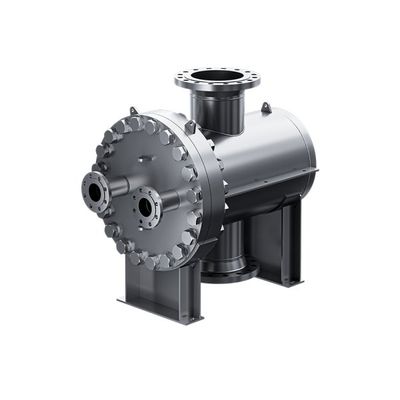

The shell and plate heat exchangers, as an alternative to shell and tube exchangers, are perfect for working at high pressure (up to 100 bar) and high temperature (up to 450°C). The design of the new JAG SHIELD allowed for more compact, lighter, and above all more efficient exchanger, perfectly adjusting to individual requirements. The special shape of heating plates and the use of innovative JAG corrugation pattern resulted in high thermal effectiveness, while maintaining low flow resistance.

The new "jagged" channel design creates a more turbulent flow, which improves heat exchange and also decreases sediment accumulation. The additional benefit is an extensive heat exchange area and decreased overall pressure drops. Highly efficient JAG SHIELD plate and shell heat exchangers provide a reliable solution for applications requiring high working pressure. They serve as evaporators or condensers in refrigeration, as oil coolers or heaters, and in CIP cleaning systems. They are perfect for steam heating or condensing processes. The exchangers made of stainless steel, Hastelloy or Incolloy superalloys may also work with aggressive media.

Innovative JAG heating plates corrugations pattern
increases thermal effectiveness of the exchanger

Special shape of the heater plates
significantly decreases local flow resistance

Vacuum soldering
used to join plates in pairs, ensures highly durable design, with substantial resistance to variable thermal loading and stress

Optimized utilization of the exchanger volume
allows to decrease its size

Design resistant to high pressure
(up to 100 bar) and temperature (up to 450°C)

Compact size
allows to save space
