Brazed - Plate Heat Exchanger

SHARE

Advantages: Very low footprint. Robust construction, standard exchange. Advantageous cost / life cycle: no maintenance. High thermal efficiency. Special connections upon request.

Most popular related searches
plate heat exchanger
brazed plate heat exchanger
heat exchanger
brazing heat exchanger
brazed heat exchanger
heating and cooling
evaporative condenser
district heating
heat network

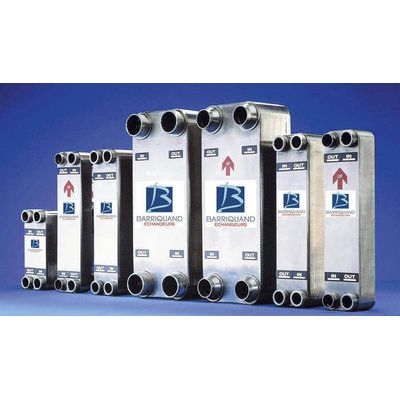

The brazed plate heat exchanger is used on DHW applications, refrigeration (evaporation/condensation), substations and small and medium-sized district heating installations.

Our brazed heat exchangers range from 0.2 m² to 60 m²

  • AISI 316 Material thickness 0.4 mm
  • The plates are assembled with brazing copper
  • Operating pressure up to 30 bar
  • Connections : DN 20 to DN 150
  • Male threaded connection or flange
  • Cannot be dismantled
  • Counterflow heat exchanger (in general)
  • Heating and Cooling
  • Network Separation
