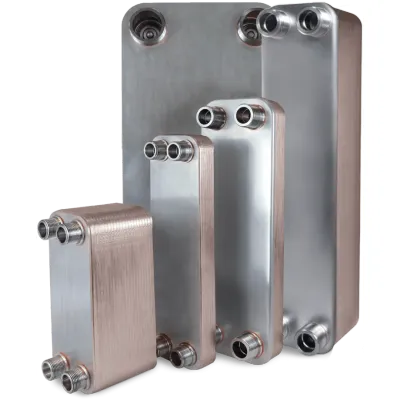

CiprianiModel PHE -Plate Heat Exchangers

SHARE

We manufacture high-performance plate heat exchangers for every project. Pressure : up to 25bar. Temperature : up to 160°C. Flow rate : up to 800 m3/h. We take care of every detail from the selection of raw materials to the creation of plate heat exchangers to ensure the highest standards of reliability and safety. Each exchanger is made according to the customer's application needs, making each product almost unique. Certified materials and processing according to the highest standards guarantee a product with maximum reliability.

Most popular related searches
  • Product reliability
  • Customer Support
  • Fast delivery times
  • Research, development and design carried out in-house
  • Company and certified products
  • Occupational safety and use of renewable energy

We use traceable and guaranteed materials to create reliable configurations combined with the choice of accessories that contribute to the safety of operators and the protection of the environment.

Frames
  • Carbon steel
  • Stainless steel
Plates from 0.4 to 0.7 mm
  • AISI 304
  • AISI 316L
  • 254 SMO
  • Titanium
  • Double Wall
Plug In™ seals
  • NBR
  • EPDM Prx.
  • FPM A – FPM GF
  • HNBR
Connections
  • Male threads (AISI 316, Moplen, Titanium)
  • ISO 2852 Clamp
  • Flanged ISO (Rubber lined, AISI 316 lined, unlined)
  • Grooved End Movable Attachments
  • Flanged ANSI (Rubber lined, AISI 316 lined, unlined)
Insulation
  • PB insulation
  • TF insulation
  • FL insulation
Accessories
  • Plate Pack Protection
  • Collection Tray
