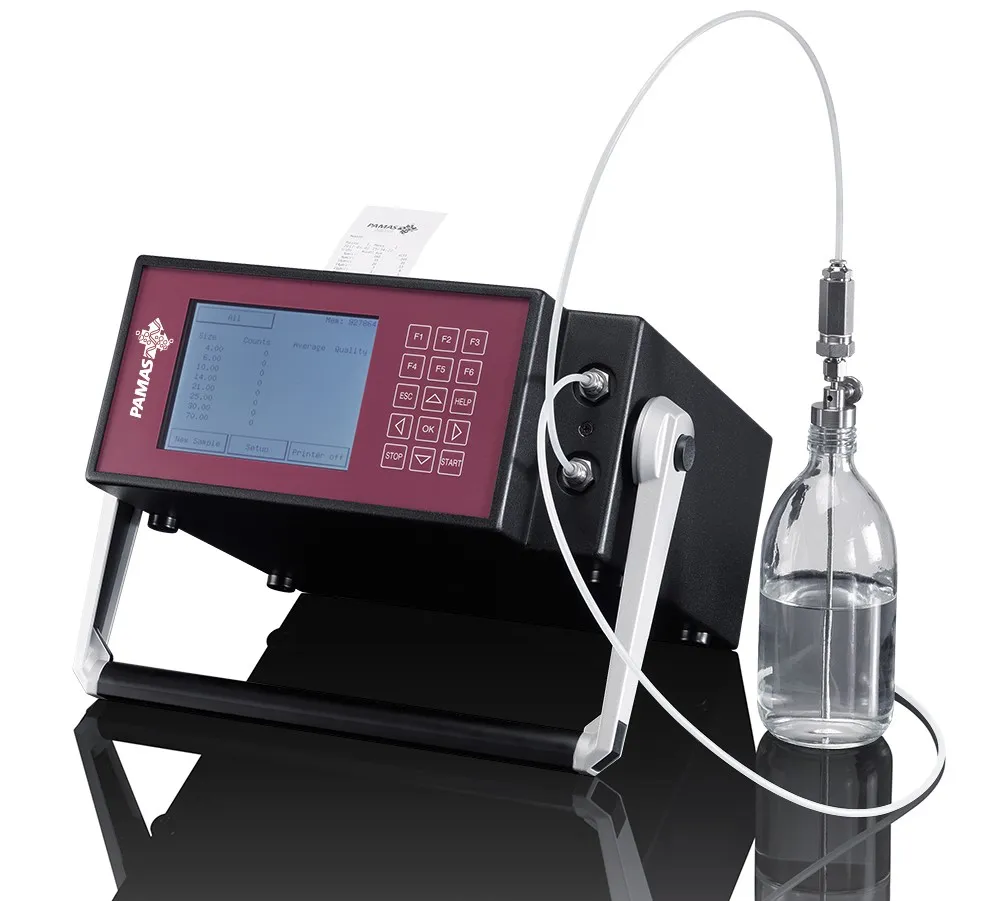

PAMAS - Model S40 AVTUR - Portable Particle Counting System for Aviation Turbine Fuel & Diesel
The PAMAS S40 AVTUR is a portable particle counter for the analysis of turbine fuels, petrol and diesel. The S40 AVTUR has its own device-specific analysis method that has derived from the Energy Institute London, namely IP 577. The S40 AVTUR instrument fully complies with DEFSTAN 91-091 and IP 630 (formerly IP PM FA). A wear resistant ceramic piston pump guarantees a constant flow. With a simple-to-use touch screen user interface, operation is easy and intuitive. The system is equipped with an integrated battery for more than three hours operation and a data storage of more than 4000 measurements. The samples can be taken from bottles without pressure or pressurised up to 6 bar. Real time sample measurement data can be printed during the analysis and also be revisited and printed at anytime at a later date.
- Online measurements at pressure-less systems
- Offline measurement using sample bottle (laboratory mode)
- Long-term analysis
- Bypass filtration monitoring
- Filter verification
- Max. particle concentration: 24.000 particles per ml at 7.8 % coincidence
- Nominal flow rate: 25 ml/min
- Calibration according to ISO 4406 in the size classes > 4 µm(c), > 6 µm(c) and > 14 µm(c)
