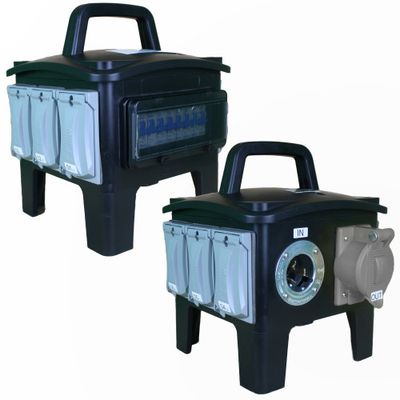

Walther ElectricModel HEB201U (NEMA 3R) -Portable Power Distribution Unit (PDU)

SHARE

Solid Rubber Enclosure, non-conductive, compact, robust, portable with top mounted handle. Internal breakers are protected by a transparent hinged cover to quickly identify tripped breaker. Black color can be used in nuclear facilities. Stackable, UV resistant, with an environmental rating of NEMA 3R for indoor/outdoor use.

Most popular related searches
  • NON-CONDUCTIVE – Heavy-duty solid rubber “non-conductive” enclosure suitable for indoor/outdoor use. NEMA 3R rated for weather resistance to rain, sleet, snow and external formation of ice on the enclosure
  • SPACE SAVING DESIGN - Modular design allows for optimal storage and transportation
  • POWER SURGE / OVERLOAD PROTECTION - Six (6) 20A Duplex GFCI (ground-fault circuit interrupter) receptacles are OSHA compliant. Easy access via transparent side-entry, hinged cover
  • COMPACT SIZE – 11.5” (L) x 12.5” (W) x 14” (H). Includes portable easy-to-carry top handle
  • CUSTOMIZATION - Can be built to your exact specifications - If you think it, we can build it! Cable assemblies available in stock and custom sizes

Walther can produce and supply the mating cable assemblies. 120/208VAC, Single Phase one tier PDU with Input: (1) 50A Twist lock CS6375 2-Pole, 4 Wire inlet, Output: (1) 50A Twist lock, CS6369, 2-Pole, 4 Wire receptacle with weather cover, (6) 20A Duplex GFCI receptacles protected by (1) 50A 2-Pole breaker(main), (6) 20A 1-Pole breakers.

Walther Electric Portable Power Distribution Unit (PDU) | 50A Single Phase 2-Pole 4 Wire - HEB201U (NEMA 3R)

  • SKU: PDU-1-HEB201U-GRY
  • UPC: 0850030071002
  • Condition: New
  • Availability: Usually ships 1-2 business days
  • Weight: 19.00 LBS
  • Width: 12.50 (in)
  • Height: 14.00 (in)
  • Depth: 11.50 (in)
  • Shipping: Calculated at Checkout, Buy in bulk and save
  • RATING: 50A, 120/208VAC, 2P+N+G
  • INPUT: (1) 50A CS Type 2P+N+G Inlet
  • OUTPUT: (1) 50A CS Type 2P+N+G Rec. (6) 20A Duplex GFCI
  • OVERCURRENT PROTECTION: (1) 50A 2-Pole, MCB (6) 20A 1-Pole, MCB
  • ENVIRONMENTAL RATING: INDOOR/OUTDOOR NEMA 3R
  • CERTIFICATIONS (North America): UL Listed
  • Construction Sites, Data Centers, Entertainment/Concerts, Marine & Ship building, Ship Repair and/or anywhere you need temporary portable power distribution.
