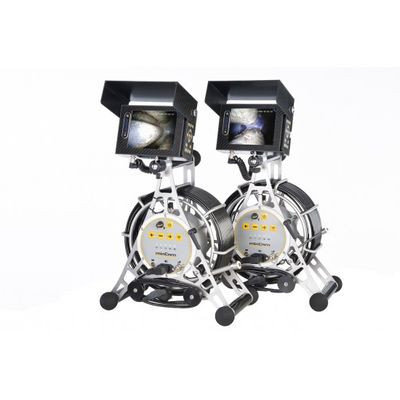

AIT - Model MC15 - Portable Push Camera

MC15 includes the following

• Stainless Steel And Carbon Fiber Frame
• Power: AC And 3 Hour Internal Lithium Ion Battery
• Display: 5.6 in. High-Resolution LCD Monitor
• Recording: Digital Storage Of Video and Still Images
• Memory: Removable SD Card (32 GB Max.)
• Counter: Integrated Distance Counter, BNC Video Out (PAL)
• Weight: 6.9Kg (14.9 Lbs.)
• Dimensions: 350 x 230 x 395mm
• Centering Guide included
• Options: Text Generation, Location Transmitter

And your choice of either a KK13 or KK18 camera head

MC15 Set with KK18

• 30m (98') Push Rod
• KK18 Camera Head
• Diameter: 18mm
• Cylinder Length: 10mm
• Pressure Rating: 3bar
• Resolution: 560 TV-lines
• Sentisitivity: 0.02Lux@F1.2
• Field of View: 84°
• Illumination: 4 Leds
• Protection: 3mm Sapphire Lens

MC15 Set with KK13

• 30m (98') Push-Pull Cable
• KK13SL Camera Head
• Diameter: 13mm
• Cylinder Length: 9mm
• Pressure Rating: 1bar
• Resolution: 560 TV-lines
• Sentisitivity: 0.02Lux@F1.2
• Field of View: 84°
• Illumination: 10 Minature Power LEDs
• Protection: 3mm Sapphire Lens

minCam MC15 Portable Push Camera Features and Benefits

• Super portable design is perfect for tranporting around industrial facilities
• Small profile allows you to easily fit the entire system inside confined spaces
• The MC15 push-pull camera system works great in the smallest pipes and can easily negotiate bends and even small P traps. The best solution for smaller diameter pipes from 15 to 80mm (1/2" to 3")
• The MC15 push-rod camera system is the best solution for long tubes and pipes up to 125mm (5")

The MC15 is the best push camera for inspection of smaller diameter pipes and tubes from 15mm to 80mm (1/2" to 3")

• Heat Exchangers
• Boilers
• Chillers
• Food process lines
• Purity piping
• drain lines

The MC15 is the best push camera for inspection of smaller diameter pipes and tubes from 15mm to 80mm (1/2" to 3")

• Heat Exchangers
• Boilers
• Chillers
• Food process lines
• Purity piping
• drain lines
