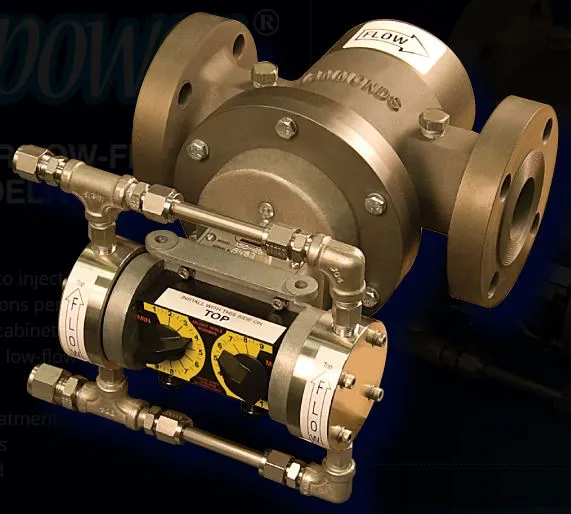

Hammonds - Model 150 - Positive Displacement Stationary Injection Systems
The Model 150 offers the ability to inject single or dual additives at smaller flow rates (7 to 75 gallons per minute). Ideal applications include self-fueling cabinets, home heating oil delivery trucks, dye injection and low-flow aviation fuel delivery trucks.
Most popular related searches
- Easily adapted for water treatment
- Installs easily in small spaces
- No power or meter required
- Even and accurate blend
- 1½” 150# ANSA connections
- Flooded suction required
- Number of Additives: 1 Standard, 2 optional
- 1-1/2" 150# connection standard (other connections available, consult factory for details)
- Injection Ratios: 0-4000 ppm depending upon application
- 7-30 gpm; 7-75 gpm with optional gear box continuous operation
- Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
- Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
- Product Viscocities: up to 10,000 ssu
- Fuels, Oils, Additives and Liquid Gases
- Duty Cycle: Intermittent
- Aluminum casting; carbon steel fabrication optional
- Metering Pump: All wetted parts 300 series stainless steel
- Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
- Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
- Upgrade to Hammonds "Smart" System
