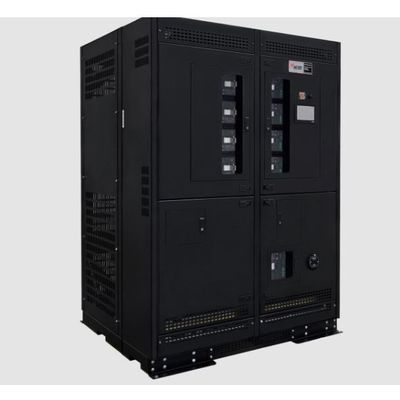

IEM - Power Distribution Unit (PDU)
IEM’s Power Distribution Units (PDUs) are engineered to deliver reliable, high-capacity power from the critical distribution system to IT equipment on the server floor or to other load points within your data center. Built to support high-density environments, IEM PDUs offer exceptional energy efficiency and are scalable to accommodate future growth.
- Input Voltage: 600VAC, 480VAC
- Input kA rating: 65 kA at 480V and 50 kA at 600V
- Output Voltage: 208Y / 120V, 415Y / 240V
- Power Rating: 300 kVA, 500 kVA
Dimensions:
- 500kVA - 58”W x 48”D x 80”H
- 300kVA - 48”W x 48”D x 80”H
Multiple Main Breaker Options:
- 80% or 100% Rated 800A LSI
- 80% or 100% Rated 800A LSIG
- Distribution Breakers (Standard or 100% rated): 8 x 250A, 400A or 600A, 35 kA rated
- Suitable for installation with front access only
- Control and monitoring package with 7” touch panel interface
- Revenue-grade main metering
- Optional Branch Circuit Monitoring
- Optional Breaker Status Monitoring (Open, Closed, Tripped)
- Transformer with electrostatic shields
- K9 rated transformer
- Neutral bus rated 200% rated current
- Modbus TCP communications
- Standard 150 kA surge protection with EMI / RFI filtering
- UL & cUL Listed
- Standard Textured Black Paint
- Optional Custom Paint
Optional IR Viewing windows:
- Input Breaker
- Branch Circuit Breakers
Fully rated bus is based on density ratings, not UL heat rise tests, resulting in more bus and lower operating temperatures.
IEM’s innovative, best-in-class proven designs derive from decades of LV switchboard and PDU manufacturing, resulting in integration-friendly packages ready for any commercial or industrial deployment.
Component and metering selections are based on proven industry brands that deliver known reliability and optimal performance.
IEM’s PDU’s meet or exceed applicable industry standards, including UL891, CSA, NEMA standards PB-2, NEMA 1 and NEMA 3R enclosures. Uses UL489 listed breakers
IEM’s PDU’s meet seismic testing, circuit requirements as outlined by IEEE693 and ICC-ESAC156
