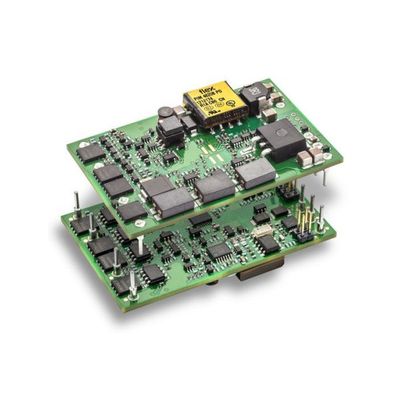

Flex - Model PIM Series -Power Interface Modules
Our range of Power Interface Modules (PIM) simplify the design of blade servers based on Advanced TCA (ATCA) standards, as well as other applications where power conditioning is required prior to the Isolated DC/DC Intermediate Bus Converter.
Most popular related searches
Offering features such as EMI filtering, hot swap, dual feed OR-ing, hold-up management, reverse polarity protection and auxiliary power management rails, the PIM can be used for any Industrial, Telecom or Datacom application employing a Distributed Power Architecture.
The PIM4328, PIM4610 and PIM4710 are specifically designed to fulfill the requirements of the PICMG 3.0 ATCA base specification, while the PIM4328 and PIM4820 are supported by the ROA1285151 Evaluation Board.
- Industry standard low profile Sixteenth-brick 33.0 x 22.9 x 8.0 mm (1.3 x 0.9 x 0.315 in.)
- Output over current protection
- Dual power feeds input
- Reverse polarity protection
- Monitoring via I2C/PMBus
- MTBF 2.24 Mh
- Narrow board pitch applications (15 mm/0.6 in)
- ORing function and Power Good
- Voltage and Current measurement for each feed
- Inrush protection and hot swap functionality
- Failure detection on ORing and hot-swap functions
- Output short-circuit protection
- Designed to work together with an external hold-up capacitor
- Highly automated manufacturing ensures quality ISO 9001/14001 certified supplier
