Maxwell - Model FSB-B - Power Management Platform
FromION Energy Inc.

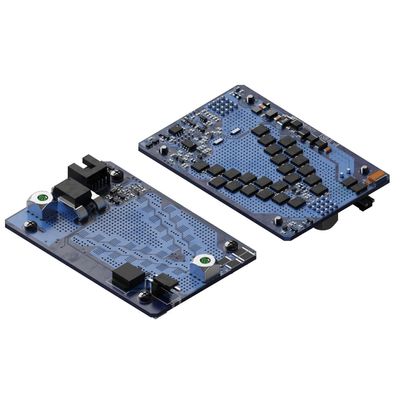

The FSB-B is an integrated Power Distribution Unit that works with the FS-LT Smart Battery Management System. It’s solid-state relay based power delivery channel protects the battery against a load-side short circuit. The FSB-B consists of a Hall Effect Current Sensor, Pre-Charge Circuitry and Mosfets. It can be easily connected to the FS-LT with a specially designed wire harness kit.
Most popular related searches
hall effect current sensor
smart battery management system
solid state relay
power distribution system
battery management system
battery system
battery management
power distribution
battery protection
battery backup
- Protects the battery against overload or short circuit
- Reports short circuit error or terminal removal conditions to the BMS through the onboard digital channel
- Built with precharge circuitry to protect the battery pack against inrush current from capacitive (6mF) loads
- Onboard sensor to measure PDU temperature
- Onboard unipolar, bidirectional 0 to 3.3V output, thermally-enhanced and fully integrated hall-effect current sensor that can measure currents up to ± 200A
- Isolated input for driving the mosfets and sensors
- Swappable Battery Systems
- Electric 2 & 3 Wheelers
- UPS/Backup Battery Systems
