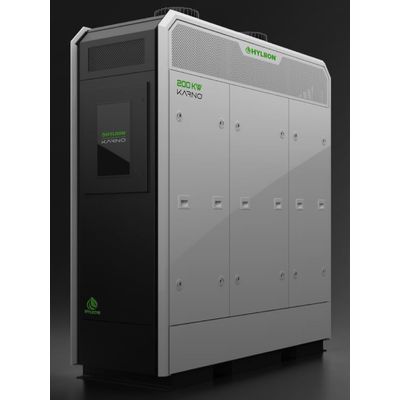

Hyliion - Model KARNO 200 kW - Power Module for Distributed Power Generation

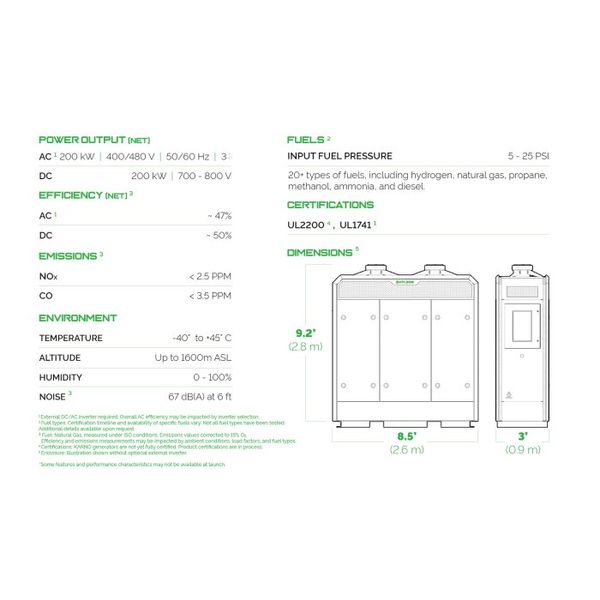

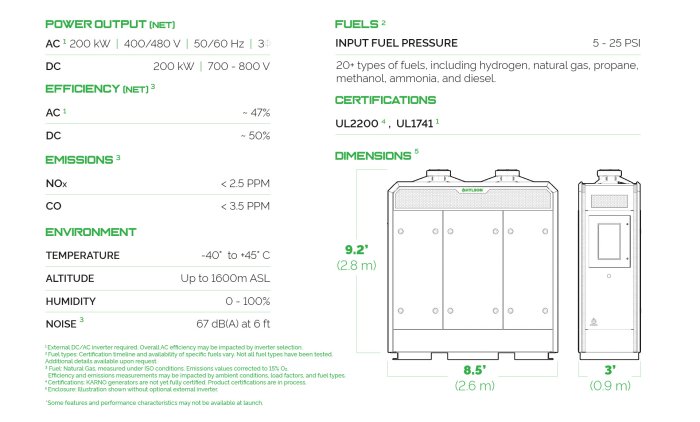

The KARNO Power Module by Hyliion is designed for distributed power generation, capable of running efficiently on various fuel sources, ensuring adaptability in a fluctuating energy landscape. With an output capacity of 200 kW and extending to 2 MW, it leverages advanced low temperature flameless oxidation and proprietary fuel injection technology, meeting strict emissions criteria without after-treatment systems. The design incorporates the Carnot cycle and 3D-printed components to mitigate energy loss. It is fully dispatchable, offering AC/DC power on demand with load paralleling and remote monitoring. The module's modular nature allows scalability and adaptation to diverse power needs, suitable for both urban and remote environments. Designed for 24/7 operation with minimal maintenance, it features a sophisticated control architecture and cloud connectivity for over 3,000 diagnostic insights, aligning with future emissions standards while providing exceptional power quality and economic viability.
