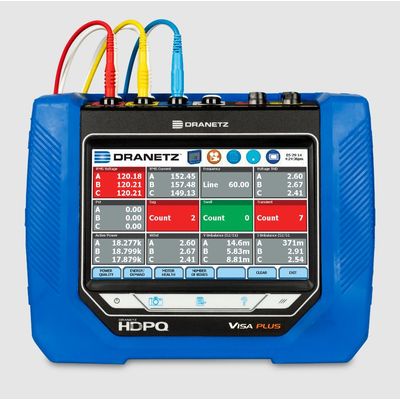

Dranetz HDPQ - Model Visa Plus - Power Quality, Demand/Energy Analyzer
The Dranetz HDPQ® Visa Plus (Portable) power quality analyzer offers the best value in power quality, demand, and energy monitoring from Dranetz, or any other Power Quality analyzer manufacturer! No other product at this price point comes close to matching the benefits and features provided by the Dranetz HDPQ Visa Plus! The Dranetz HDPQ® Visa Plus measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014 and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting and more. The Dranetz HDPQ Visa Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and use either the VNC interface along with our Dran-View 7 software, or our Dranetz HDPQ Apple or Android Apps via Ethernet for remote control from anywhere with connectivity to the instrument.
(4) Differential AC/DC Voltage: 512 samples/cycle, 16 bit resolution
- 40-1000Vrms, +/- 0.1% reading. <40V +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A Ed 3: 60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
- Transients – 0-1414Vpk, +/- .2% of Udin
(4) AC/DC Current: 512 samples/cycle, 16 bit resolution
- Range (rms) probe dependent, +/- 0.1% reading +/- 0.05% FS
- Transients – Range probe dependent
Frequency: 10 sec window
- 16-25Hz, 42.5-69Hz, +/- 0.01Hz
Distortion – 200ms, 3 sec, 10 min windows
- Vthd: 0-100%, +/- 5% for V>=1% Vnom,
- V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
- Ithd: 0-100%, +/- 5% for I>=1% Inom,
- I Ind Harm: DC, 2-63, +/- 5% for I>=1% Inom
Misc.
- Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
- Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1
General Specifications
Dranetz HDPQ Visa
- Size: (10″w x 8″h x 2.75″d), (25.4cm x 20.3cm x 7.0cm)
- Weight: 4.2lbs, 2kg
- Operating temperature: 0 to 50 deg C ( 32 to 122 deg F)
- Storage temperature: -20 to 60 deg C (-4 to 131 deg F)
- Humidity: 10-90% non condensing
- AC Adapter (12V): 100-240Vac 50/60Hz
Clock accuracy and resolution
- Internal: +/- 1 sec/day at 25 deg C
- NTP: +/-10 msec
- GPS: +/-1 msec
Battery capacity and charge time:
- Dranetz HDPQ Visa Plus: 3 hours run time on full charge, 3 hours charge time
Memory size: 4GB
Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
Ethernet
Bluetooth (optional)
USB On the Go (OTG)
VNC remote control
Android & Apple Apps
Ease of Use Features
Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
Standards Compliance
Power Quality
IEC 61000-4-30 Class A Edition 3
IEEE 1159: 2009
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dependent
Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
Power Factor (W/VA) -”true” -1 to 0 to 1
Displacement PF -1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dependent
Energy (in Wh): meets 0.2S requirements, range probe dependent
- Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
- IEC 61000-4-30 Class A Edition 3 PQ compliant (certificate) – Reliable Measurements from a Reputable Manufacturer
- Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
- Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
- 7″ color, touch LCD display
- Colored Cables & Connector Panel – Safety, Convenience & Ease Of Use
- Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
- Ethernet Communications for Remote Control & Data Downloading – Be Safe & Productive
- Tests 50/60Hz and 16/25Hz
- Also available in an IP65 enclosure with phase power – See the Dranetz HDPQ Visa SP
- 3 year factory warranty
- Made in the USA in our ISO 9001:2015 certified factory
Dranetz HDPQ Visa Plus – Precision
- High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
- Eight channels, 4 voltage & 4 current
- Advanced PQ – IEC 61000-4-30 Class A Ed 3 & IEEE 1159 compliant
- Harmonics – IEC 61000-4-7, IEEE 519:2014
- Transient capabilities – V & I waveshape triggers. Well beyond PQ standards requirements
- 100 cycle pre/post trigger buffer
- EN 50160 Ed 3
- Motor AnswerModule®
Dranetz HDPQ Visa Plus – Communications
- Ethernet, USB, Bluetooth – Optional
- VNC for full remote control from Dran-View 7 or a 3rd party App
- Apple & Android apps with real time metering and alarm Dashboard
Dranetz HDPQ Visa Plus – Safe & Rugged
- Arc Flash Safety
- UL/cUL listed and CE approved
- Rugged enclosure with an easy to grip, shock absorbing, non-conductive boot
- Power supply cable retainer and wire management
- Drop tested to 6’
- Automatic circuit detection and feedback on proper connection of the instrument
Dranetz HDPQ Visa Plus – User Interface
- 7” WVGA color touch display
- Automatic setups – PQ, Demand and Energy
- Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard
Dranetz HDPQ Visa Plus – Productivity
- Mini-Report – Screen snapshots, XML file. Easily uploaded and emailed!
- PQ & Energy Dashboard’s for real time alarming
- Bigger display for more productive local analysis
- Dran-View 7 power quality analysis software
- Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
- Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
