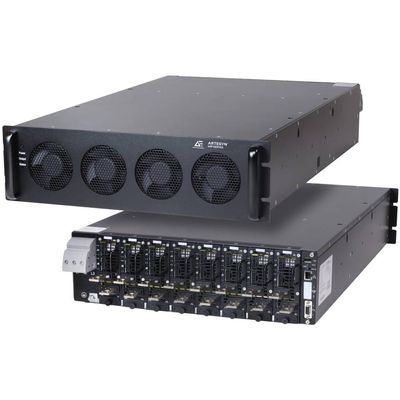

Advanced Energy - Model Artesyn - iHP, Air Cooled Series - Precision High Power System
Providing up to 24 kW in 3 kW increments, the iHP configurable precision power system offers accuracy, resolution, and stability as either a programmable voltage or current source for a wide range of medical, industrial, lighting/horticulture, and semiconductor applications. The iHP can be configured for up to eight outputs using a variety of plug-in modules to address a wide range of voltages and currents. The power supply has medical safety and industrial safety (SEMI F47) approvals. The iHP offers either an analog or a digital interface supporting standard protocols, while a GUI eases configuration and user-dashboard creation. For horticulture, a detailed scheduling and control software is available. For non-medical applications, a smaller lighter rack is available.
- Active power factor correction
- Air cooled
- Field upgradeable firmware
- Flexible control interfaces
- Medical safety approved - NO ISOLATION XFMR NEEDED
- Multi output precision and modular high power system
- Outputs program as voltage or current source
- Programmable slew rate
- User defined command profiles
- Versatile input configurable to:
- All Input Parameters See Datasheet
- All Output Parameters See Datasheet
- All Interface Control See Datasheet
- All Safety Related Info See Datasheet
- Software Programming See User Manual
- Output Power (W): 24000
- Length (Inches): 27.8
- Width (Inches): 17.6
- Height (Inches): 5.22
- Mounting Type: Configurable
- Minimum Output Current (A): 0
- Maximum Output Current (A): 1600
- Output Voltage Range (V): 0.6 to 360 V
- Minimum Output Power (W): 0
- Maximum Output Power (W): 24000
- Minimum Input Voltage (V): 180
- Maximum Input Voltage (V): 660
- Warranty (Years): 5
- 100% digital control
- Fast current slew rate up to 200 Hz
- High line 342-528 Vac 3phase
- Low line 180-264 Vac single phase and 3phase
- Outputs parallel up to 1600 A
- Outputs series up to 1000 V
- Semi F47 compliance
- Standard 19" rack
